Section 27 (Security Control System (Except CROSSCABRIOLET))
›
System Description
›
Intelligent Key System/Engine Start Function
›
Component Parts Location
Component Parts Location
WARNING:
This page is about a different variant/trim than selected.

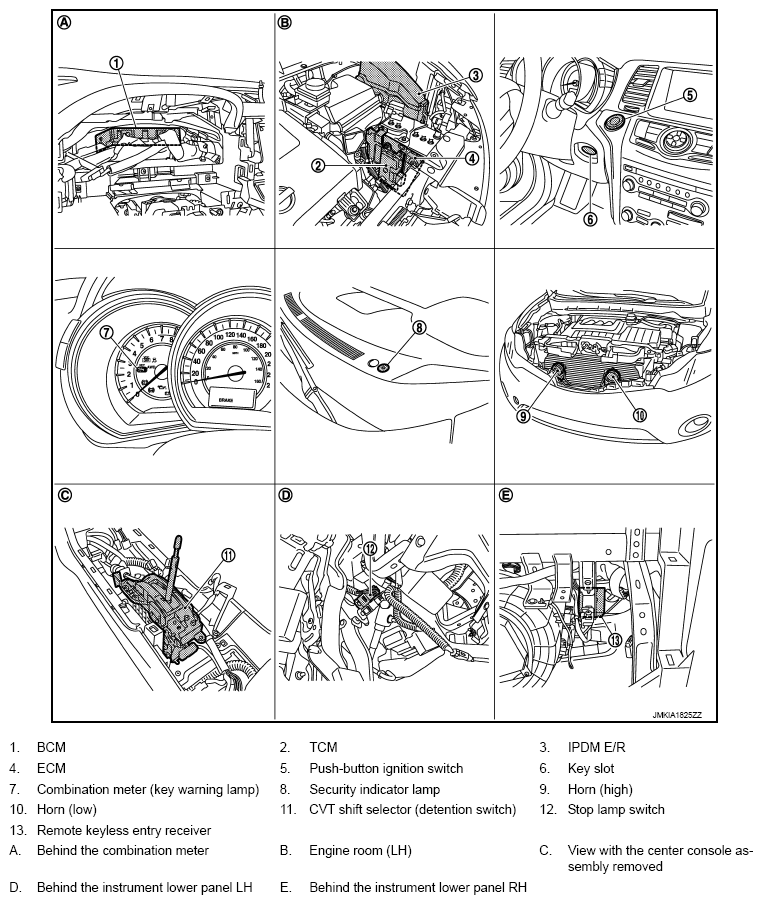

Fig 1: Intelligent Key System/Engine Start Function Components Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

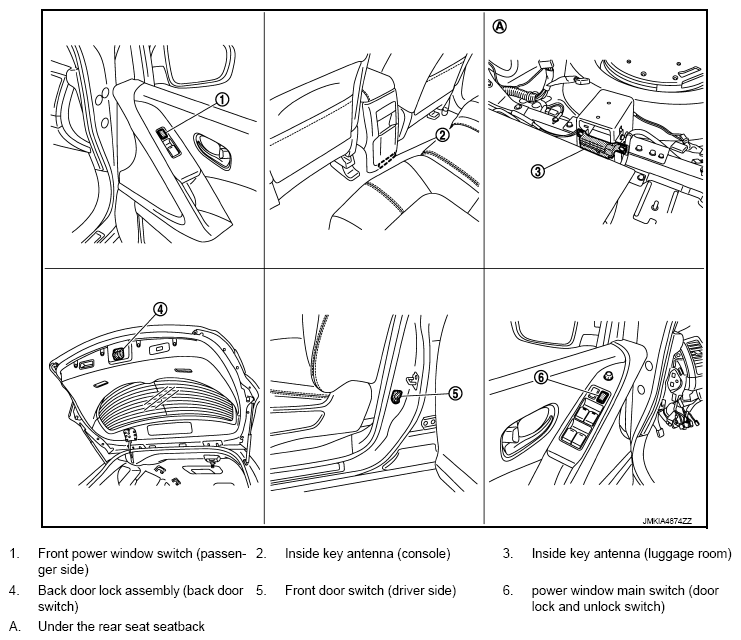

Fig 2: Intelligent Key System/Engine Start Function Components Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
