Engine Control System - Introduction (Except CROSSCABRIOLET)
›
System Description
›
Cooling Fan Control
›
System Diagram
System Diagram

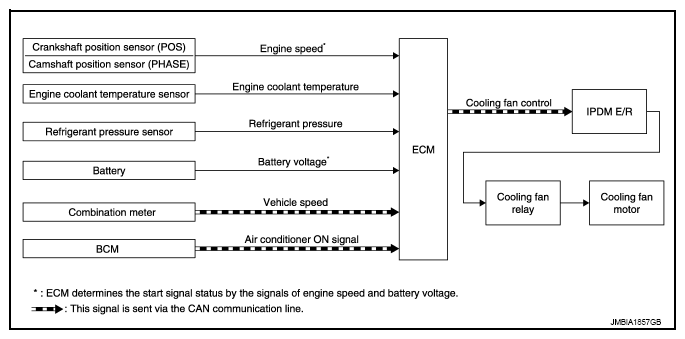

Fig 1: Cooling Fan Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
