Section 33 (Accelerator Control System (CROSSCABRIOLET))
›
Removal And Installation
›
Accelerator Control System
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

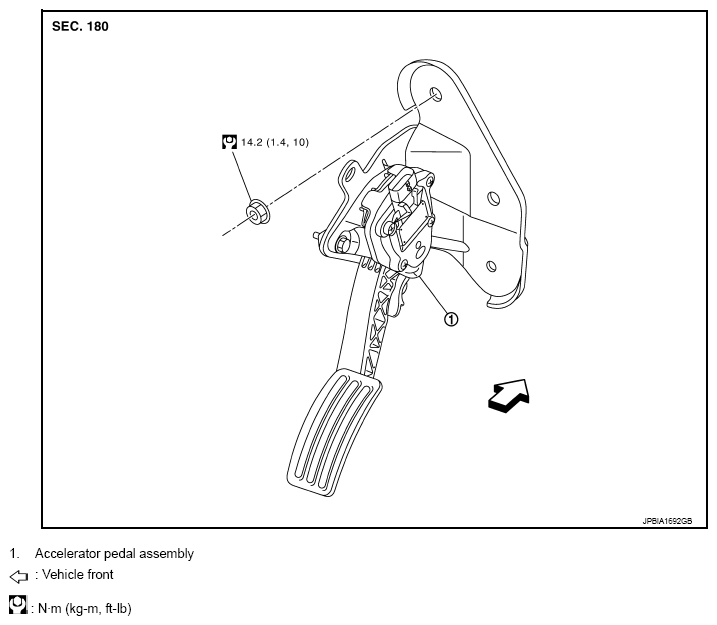

Fig 1: Exploded View Of Accelerator Pedal Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
