Section 45 (Steering Control System (CROSSCABRIOLET))
›
System Description
›
System
›
EPS System
›
EPS SYSTEM: System Diagram
›
Cross-Sectional View
Cross-Sectional View
WARNING:
This page is about a different variant/trim than selected.

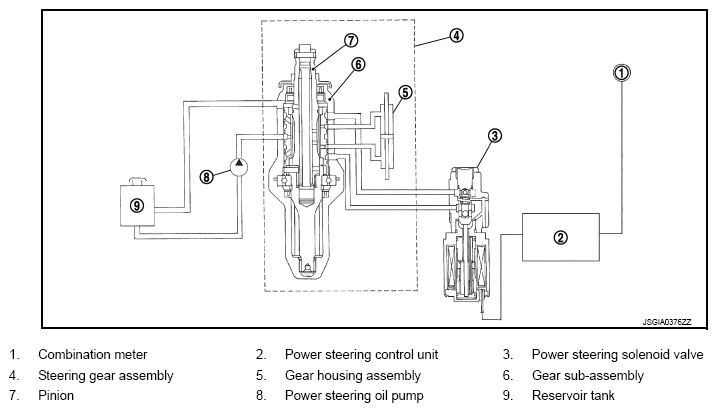

Fig 1: Cross-Sectional View Of EPS System
Courtesy of NISSAN NORTH AMERICA, INC.
