Connector Terminal Identification

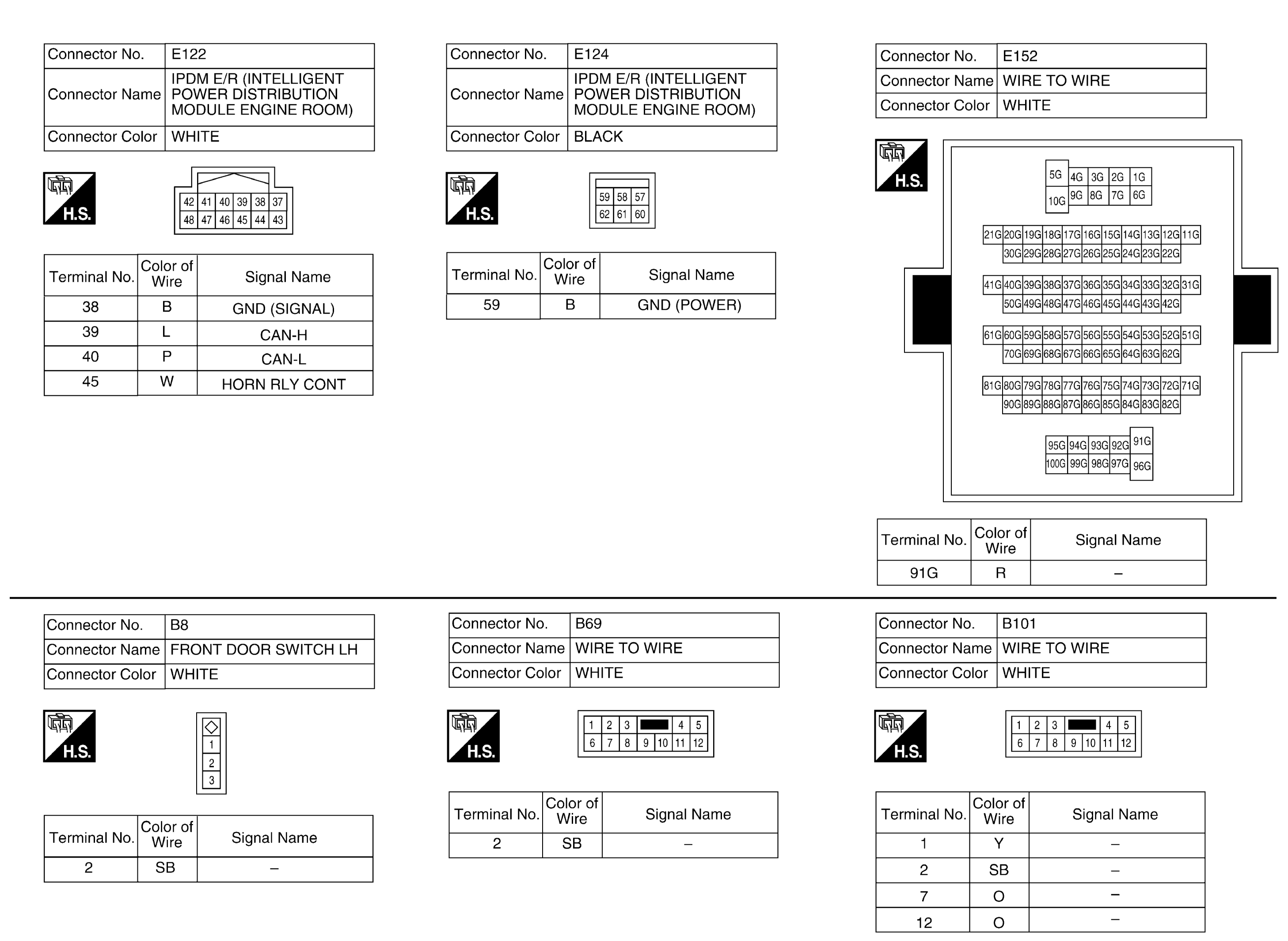

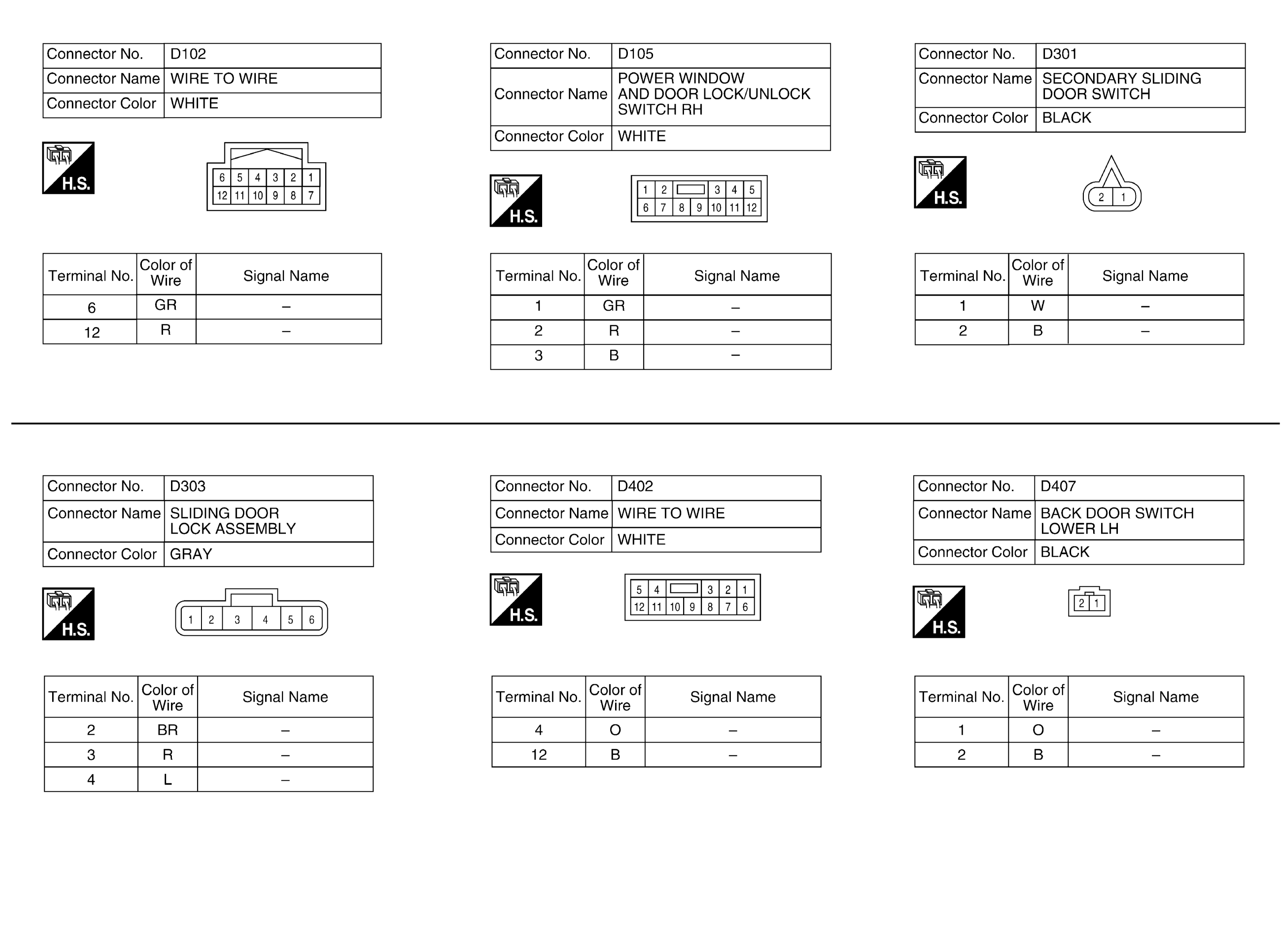

Fig 1: Identifying Vehicle Security System Connectors (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

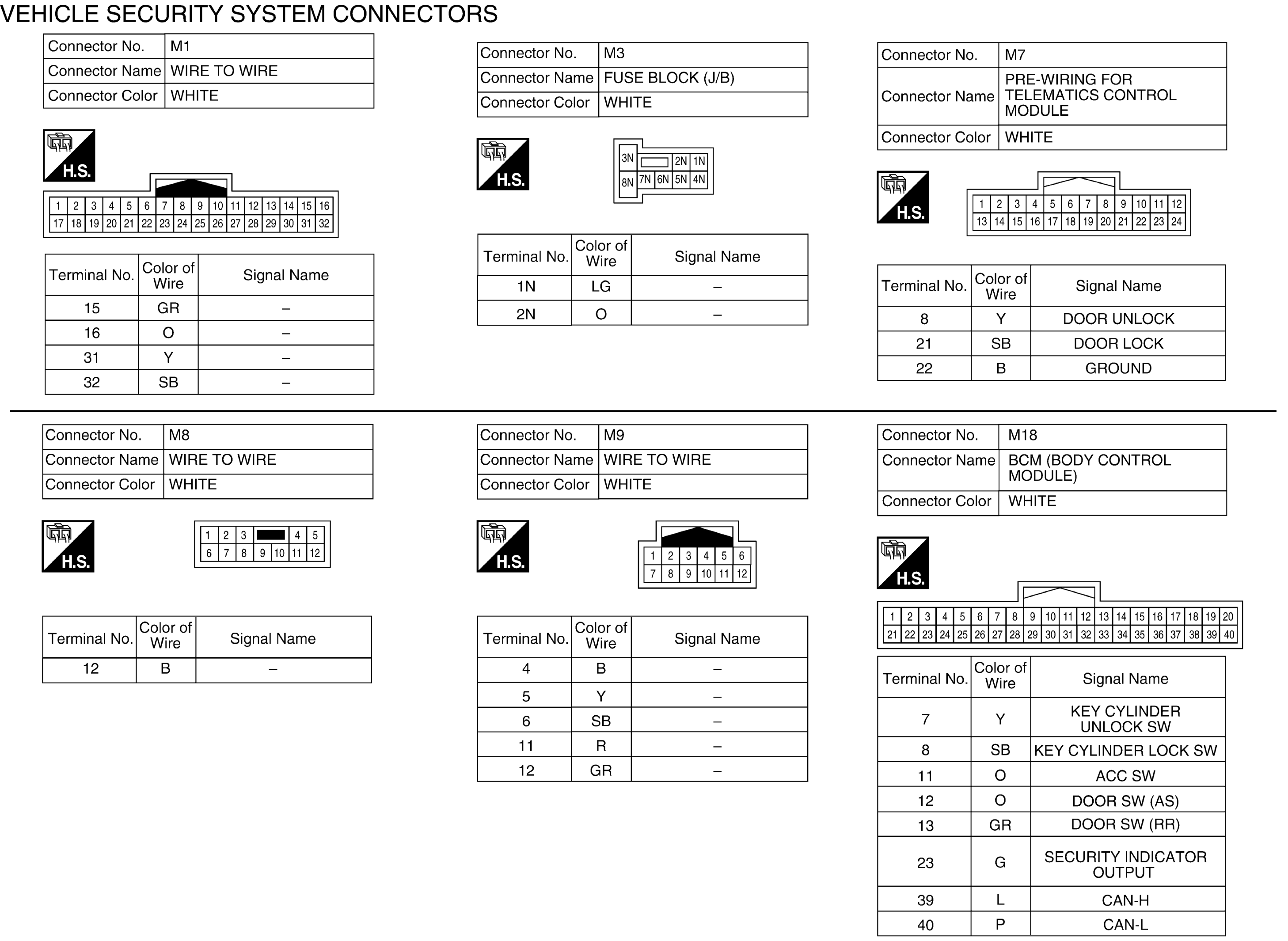

Fig 2: Identifying Vehicle Security System Connectors (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

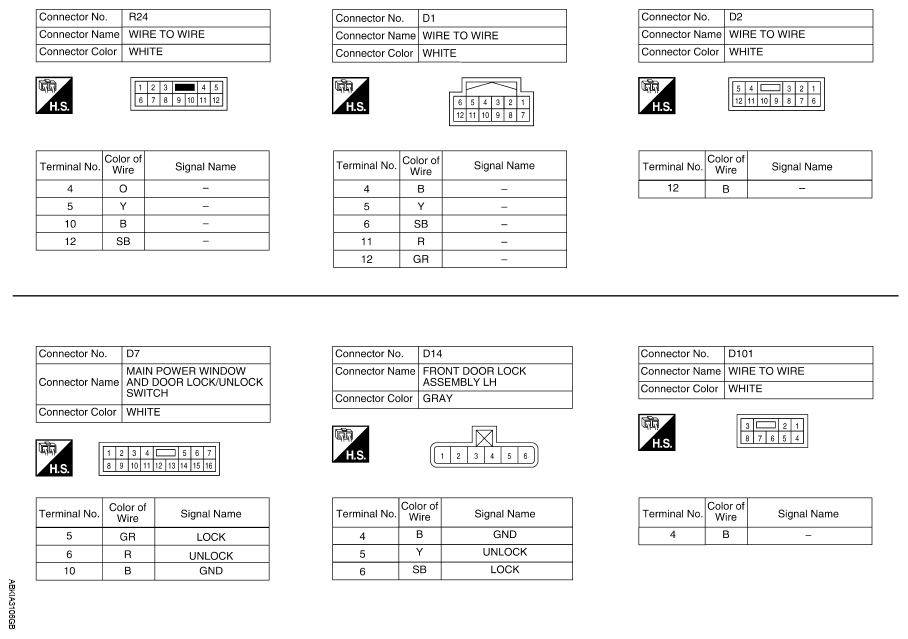

Fig 3: Identifying Vehicle Security System Connectors (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

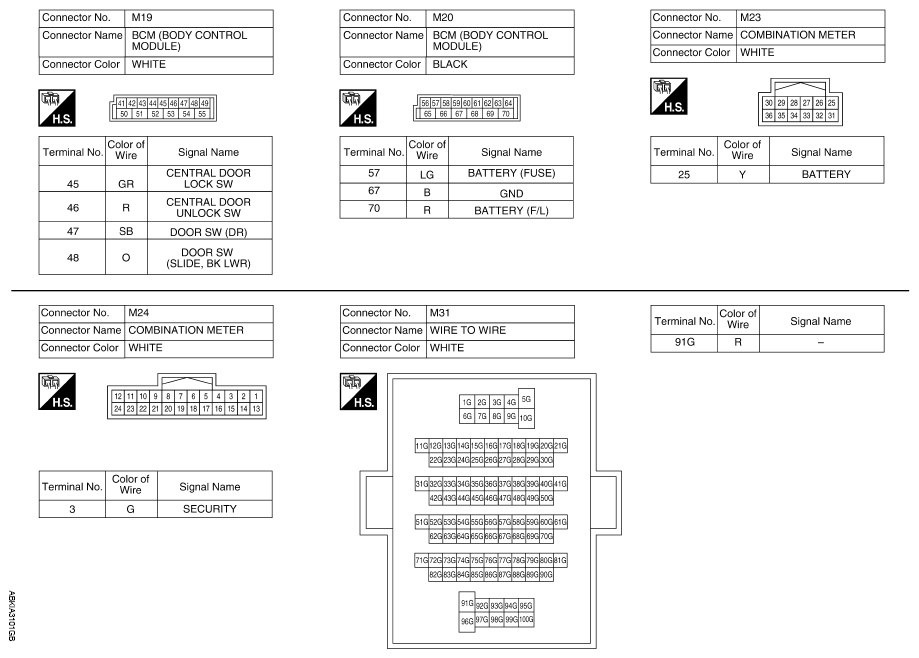

Fig 4: Identifying Vehicle Security System Connectors (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

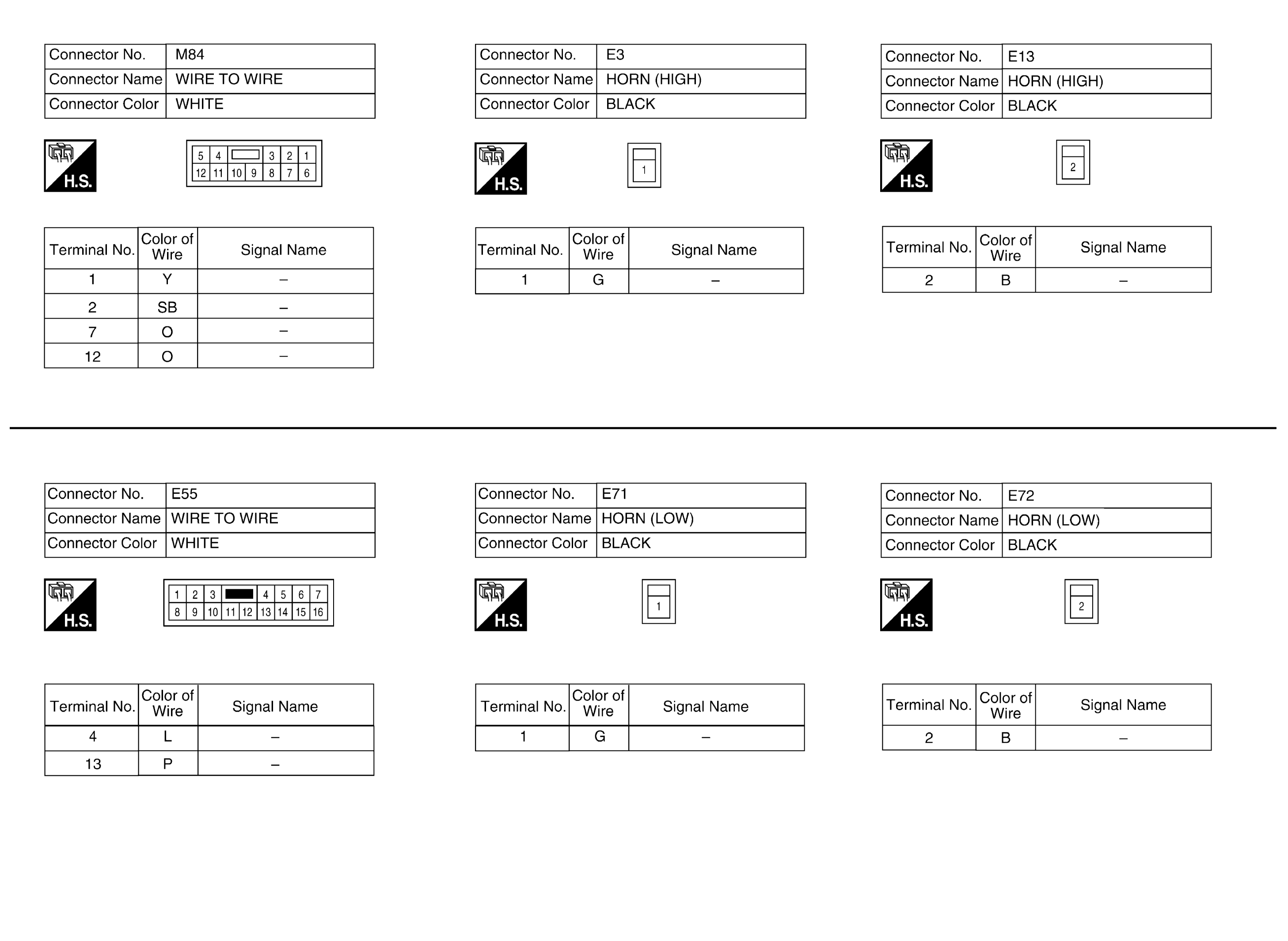

Fig 5: Identifying Vehicle Security System Connectors (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

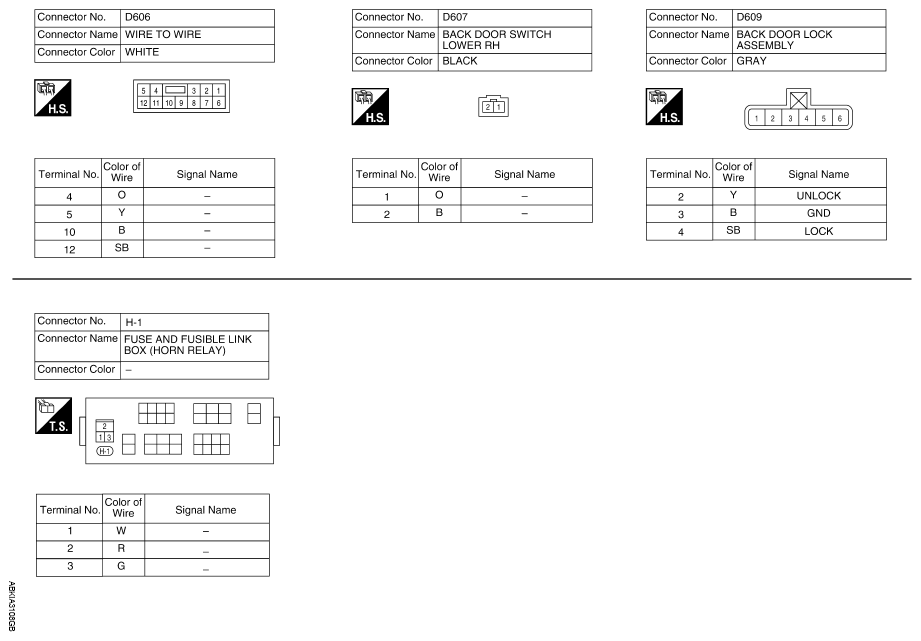

Fig 6: Identifying Vehicle Security System Connectors (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

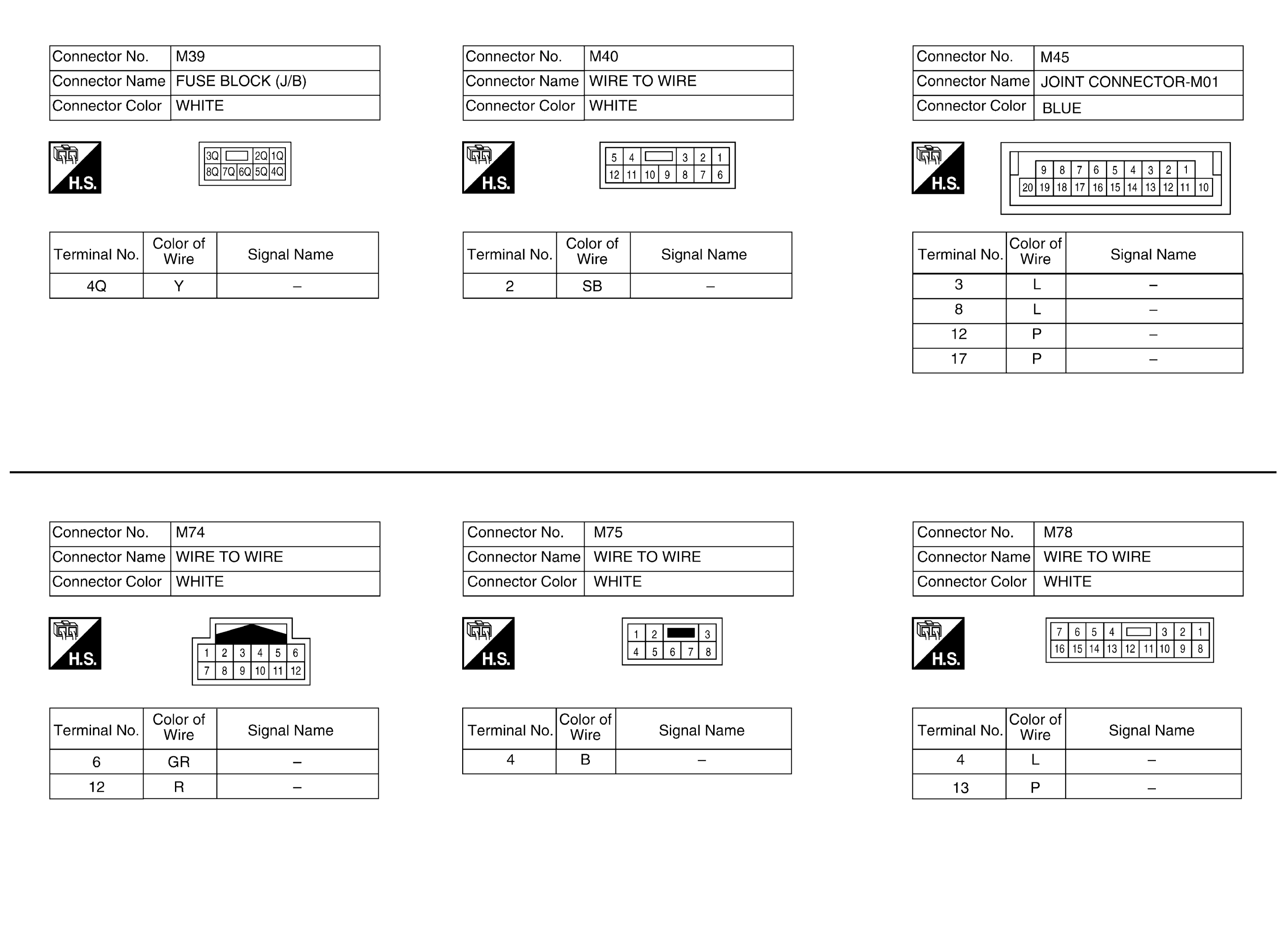

Fig 7: Identifying Vehicle Security System Connectors (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

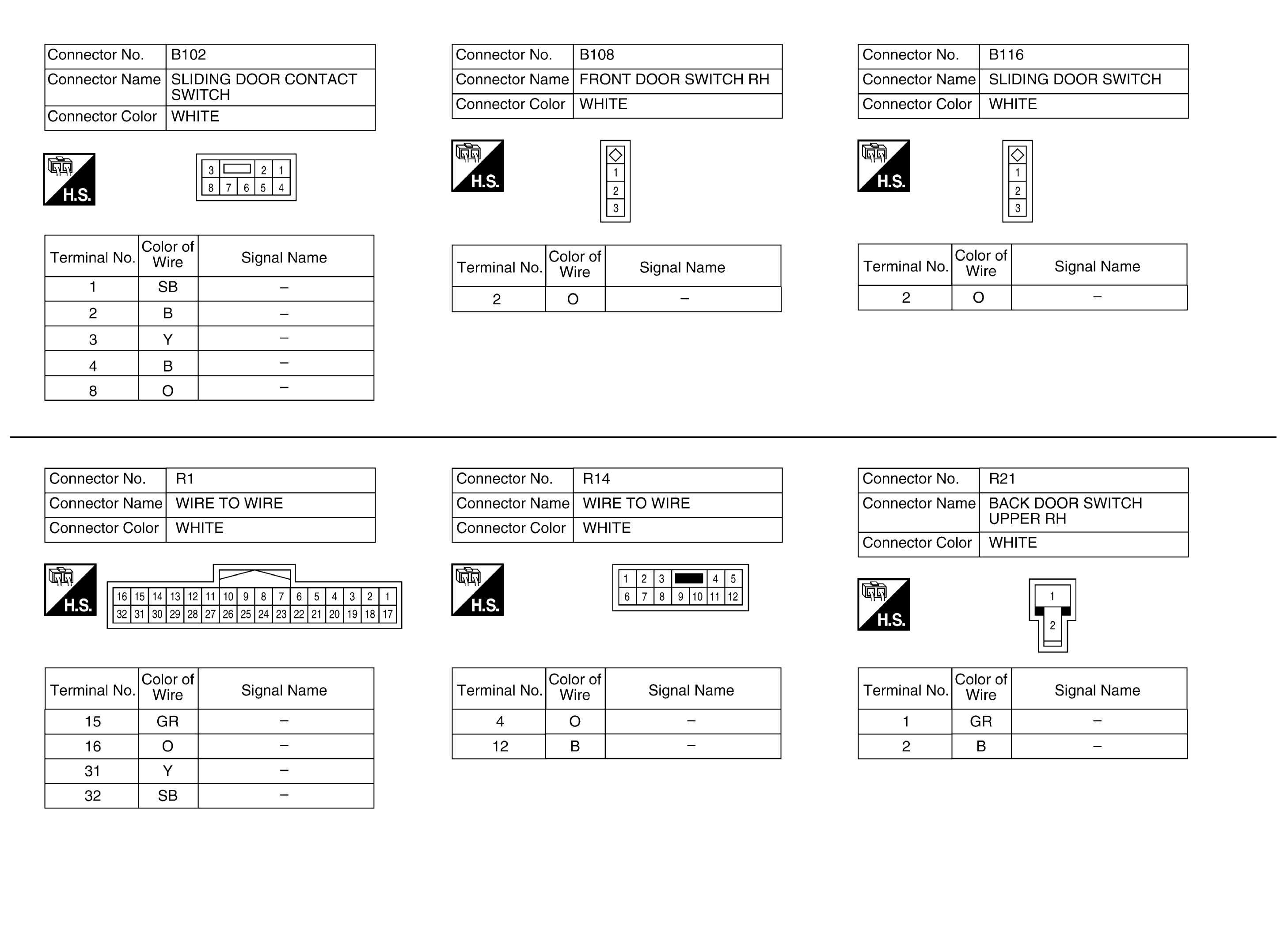

Fig 8: Identifying Vehicle Security System Connectors (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Vehicle Security System Connectors (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
