System Description
›
System
›
System Diagram
›
Front Window System
Front Window System

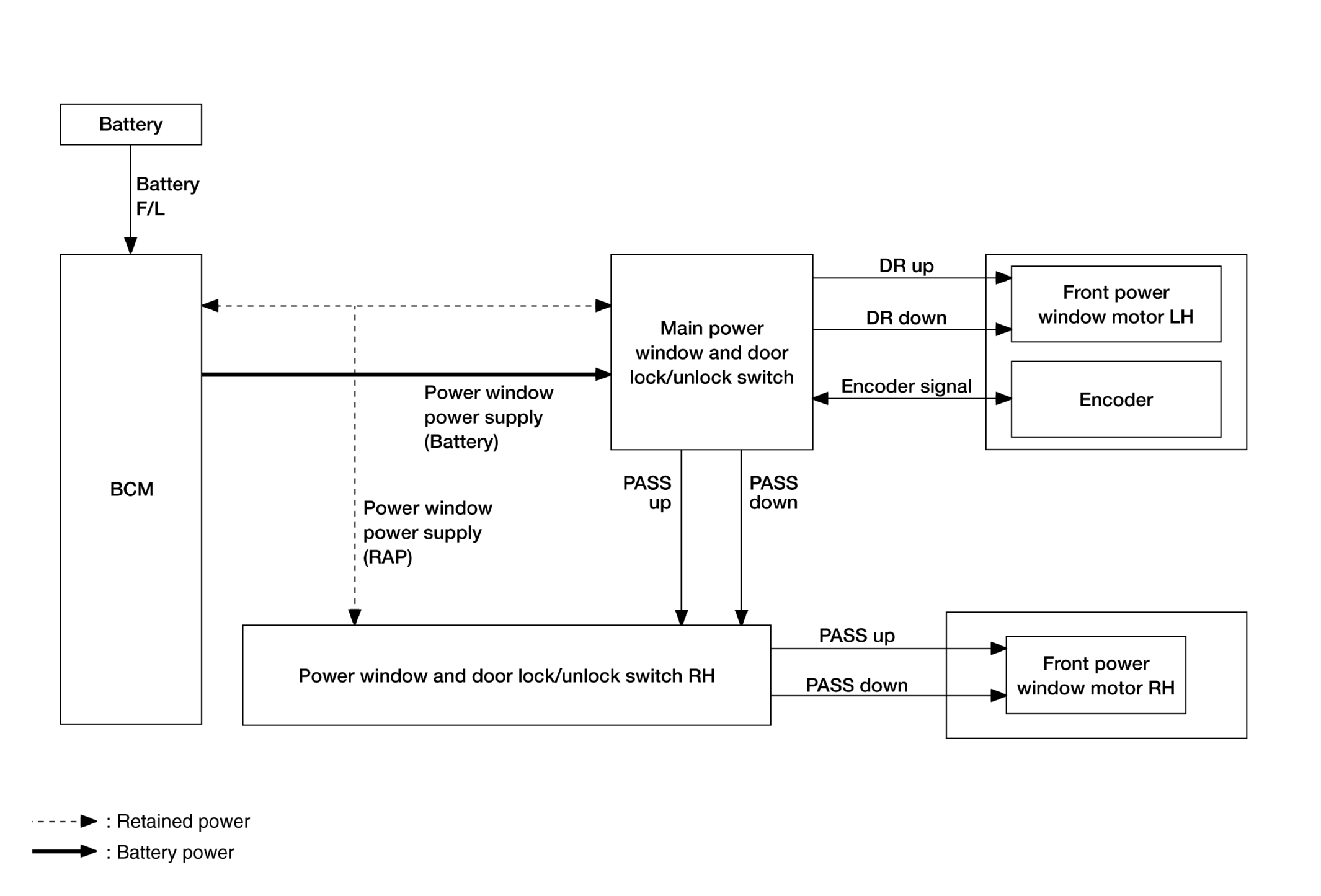

Fig 1: Front Window - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
