Removal and Installation: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the IPDM E/R upper cover.

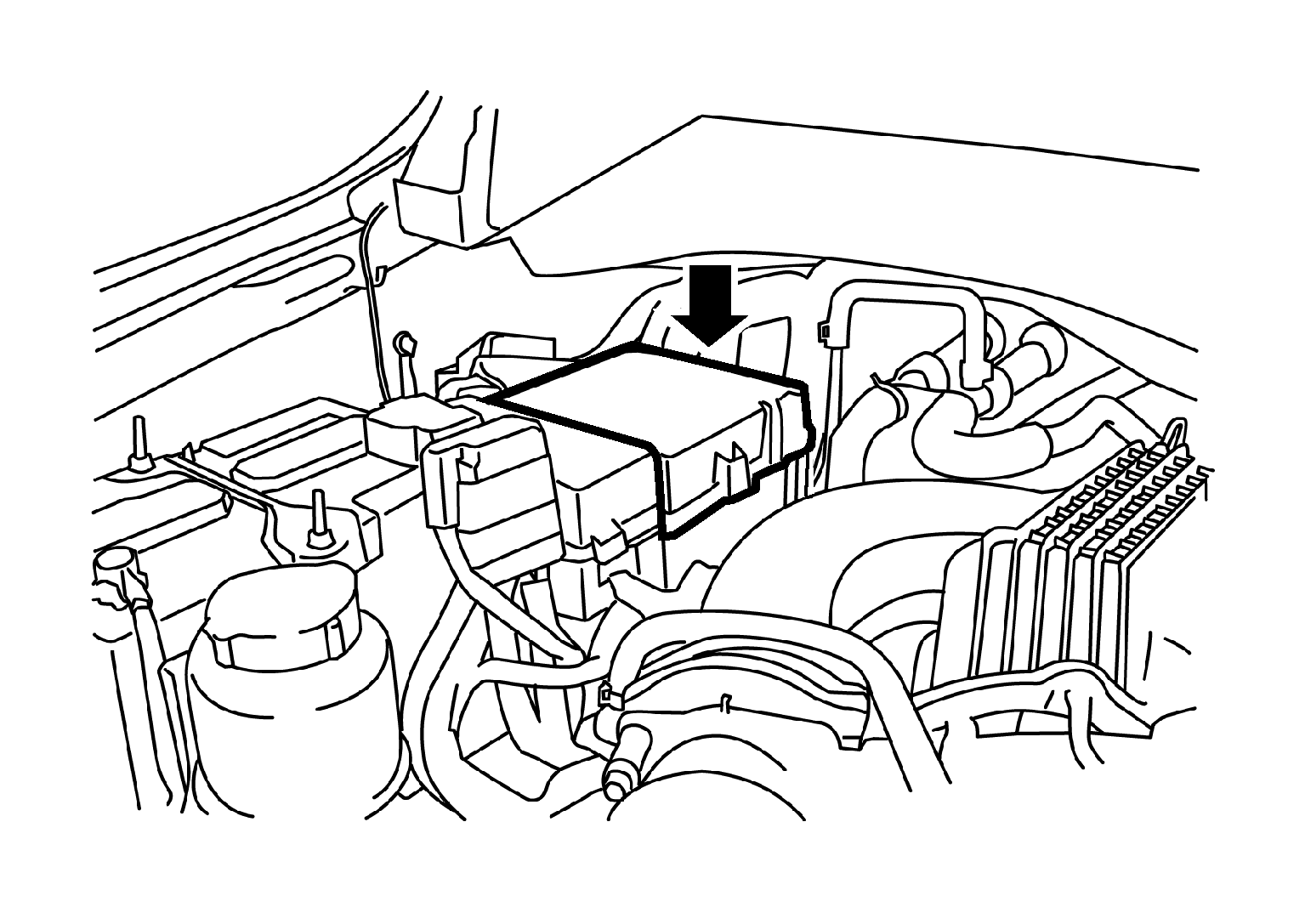

    Fig 1: Locating IPDM E/R Upper Cover
    G08160731Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the two clips and pull the IPDM E/R up from the case.
  4. Disconnect the harness connectors from the IPDM E/R and remove.
    Fig 2: Locating IPDM E/R Clips
    G04937975Courtesy of NISSAN NORTH AMERICA, INC.
