Basic Inspection
›
Diagnosis And Repair Workflow
›
Work Flow
›
Overall Sequence
Overall Sequence

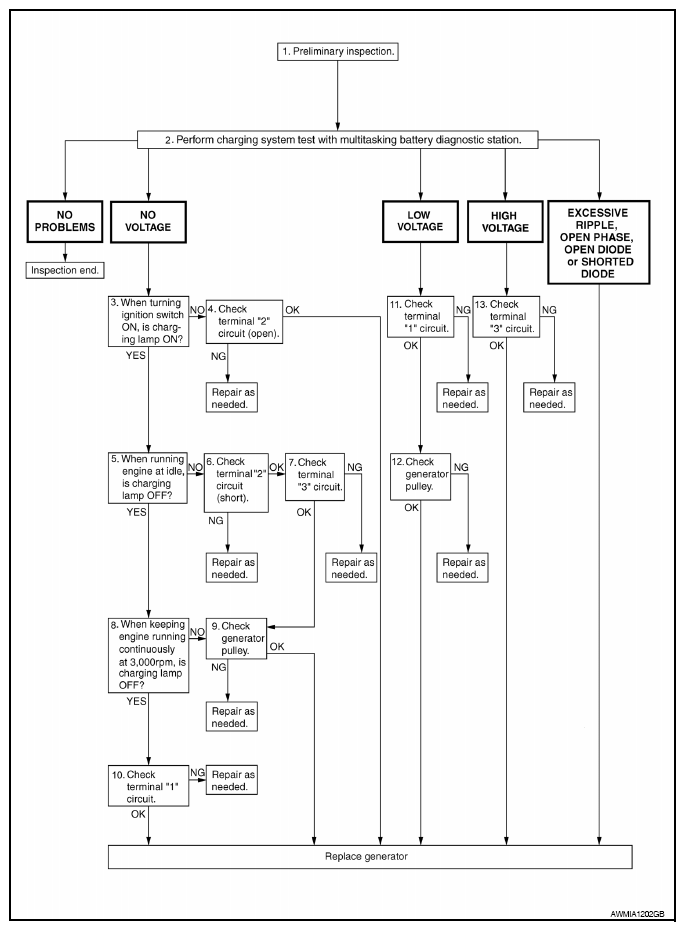

Fig 1: Diagnosis And Repair Workflow Chart (Overall Sequence)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
