Disassembly and Assembly: Notes

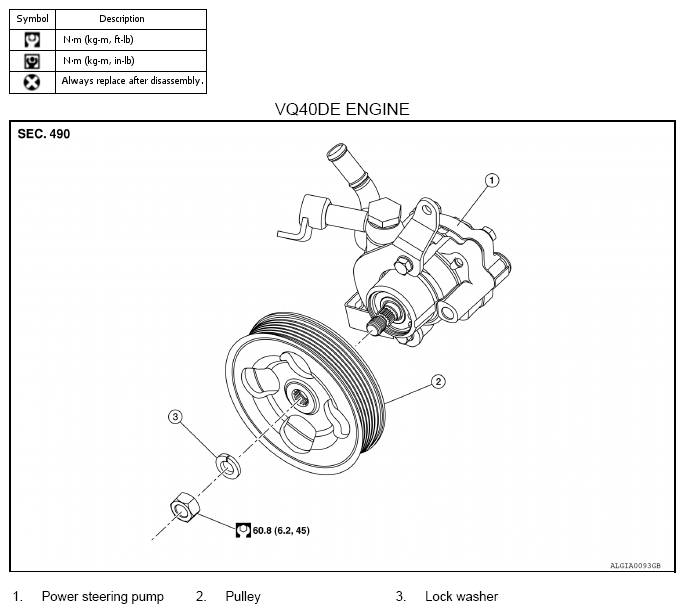

Fig 1: Disassembled View Of Power Steering Oil Pump With Torque Specification (VQ40DE Engine)

Courtesy of NISSAN NORTH AMERICA, INC.

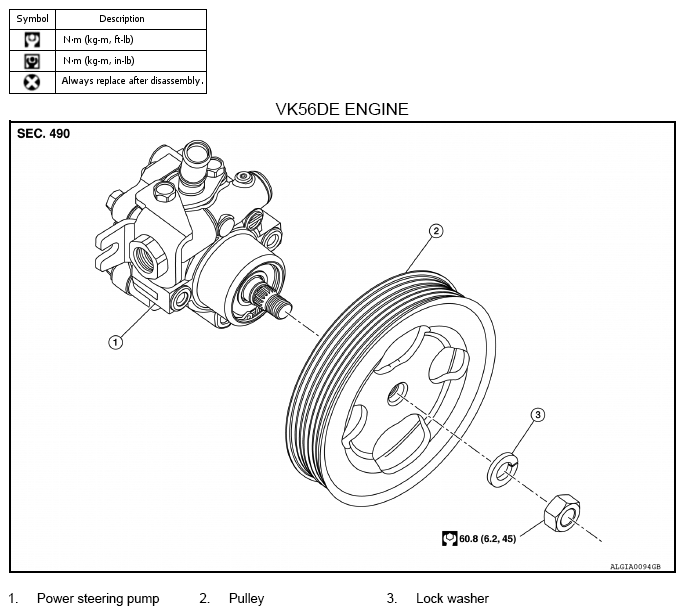

Fig 2: Disassembled View Of Power Steering Oil Pump With Torque Specification (VK56DE Engine)

Courtesy of NISSAN NORTH AMERICA, INC.
