Ignition Timing

  1. Attach timing light to loop wire as shown.

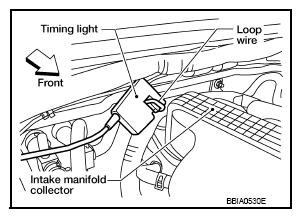

    Fig 1: Attaching Timing Light To Loop Wire
    G08170350Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.

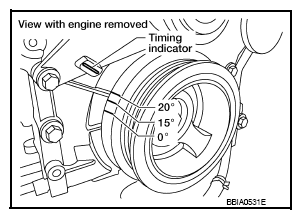

Fig 2: Checking Ignition Timing With Timing Light
G08170351Courtesy of NISSAN NORTH AMERICA, INC.
