Vacuum Hose Drawing

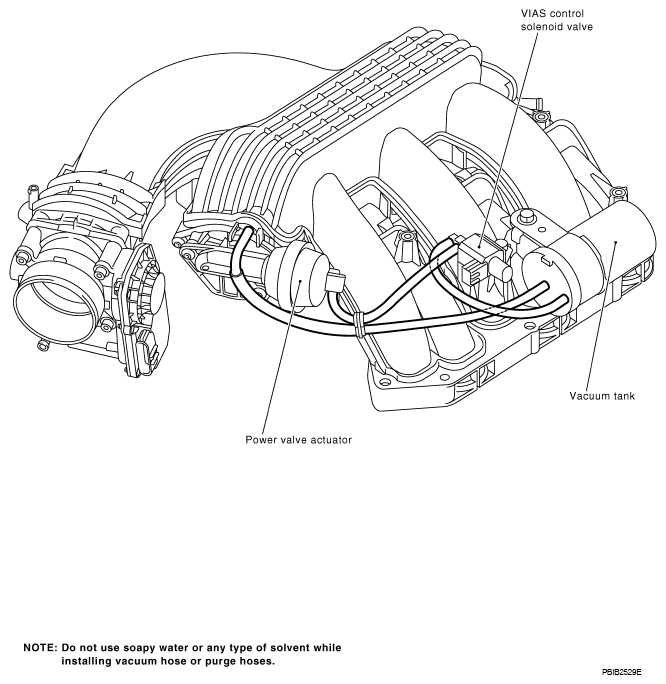

Fig 1: Identifying Vacuum Hose Drawing

G08170380

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
