Rear View Monitor Function

Operation Description

• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.
• When the selector lever is shifted to any position other than the reverse position, the original image (the image displayed before the rear view monitor image) is displayed.

Camera Image Operation Principle

• The audio unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the audio unit when power is supplied from the audio unit.
• The audio unit combines a warning message and fixed guide lines with an image received from the rear view camera to display a rear view camera image on the screen.

Vehicle Width and Distance Guide Lines Display Function at Rear View Monitor Display

• The vehicle width and distance guide lines are displayed at the rear view monitor display to allow the driver to more easily judge distances between the vehicle and objects and help the driver back into a parking space.
  Fig 1: Identifying Vehicle Width & Distance Guide Lines

  Courtesy of NISSAN NORTH AMERICA, INC.

Side Distance Guide Lines and Possible Route Lines Display Function at Rear View Monitor Display

Precautions for Side Distance Guide Lines and predictive course line Display on the Rear View Monitor Display Side distance guide lines and predictive course line on the display may be different from actual lines depending on vehicle conditions and road conditions.

Precautions for road conditions

• Since guide lines are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.
  Fig 2: Identifying Side Distance Guide Lines & Possible Route Lines

  Courtesy of NISSAN NORTH AMERICA, INC.

Precautions for block

• Since guide lines are drawn based on the road, a different distance may be displayed if a protruding block is present nearby.

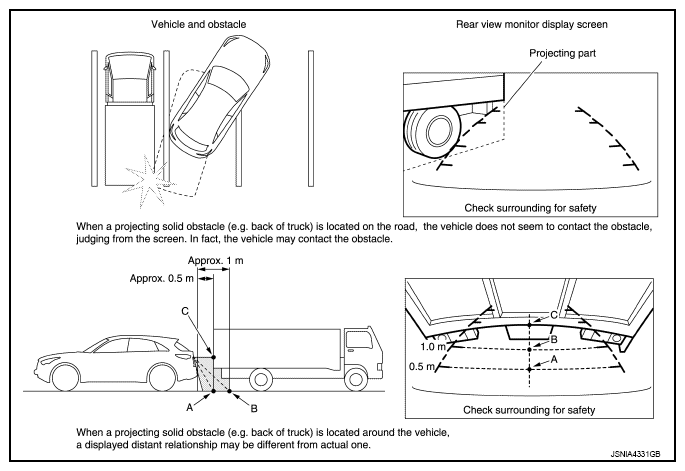

  Fig 3: Identifying Distance Between Obstacle & Vehicle

  Courtesy of NISSAN NORTH AMERICA, INC.
