Power Window Control System (Front Window Anti-Pinch)
›
System Description
›
System
›
Circuit Diagram
Circuit Diagram

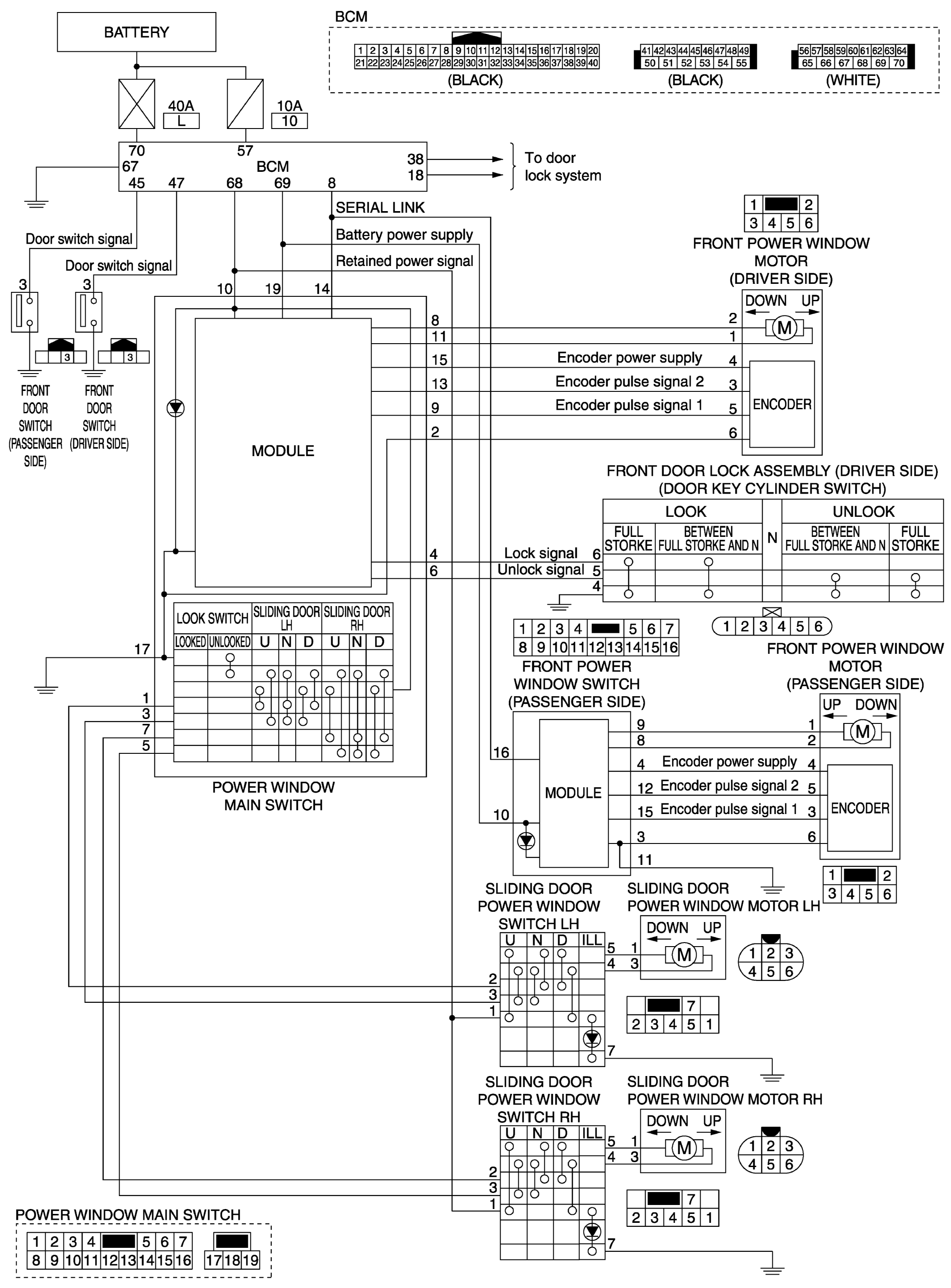

Fig 1: Power Window Control System Circuit Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
