Power Control System
›
IPDM E/R
›
System Description
›
System
›

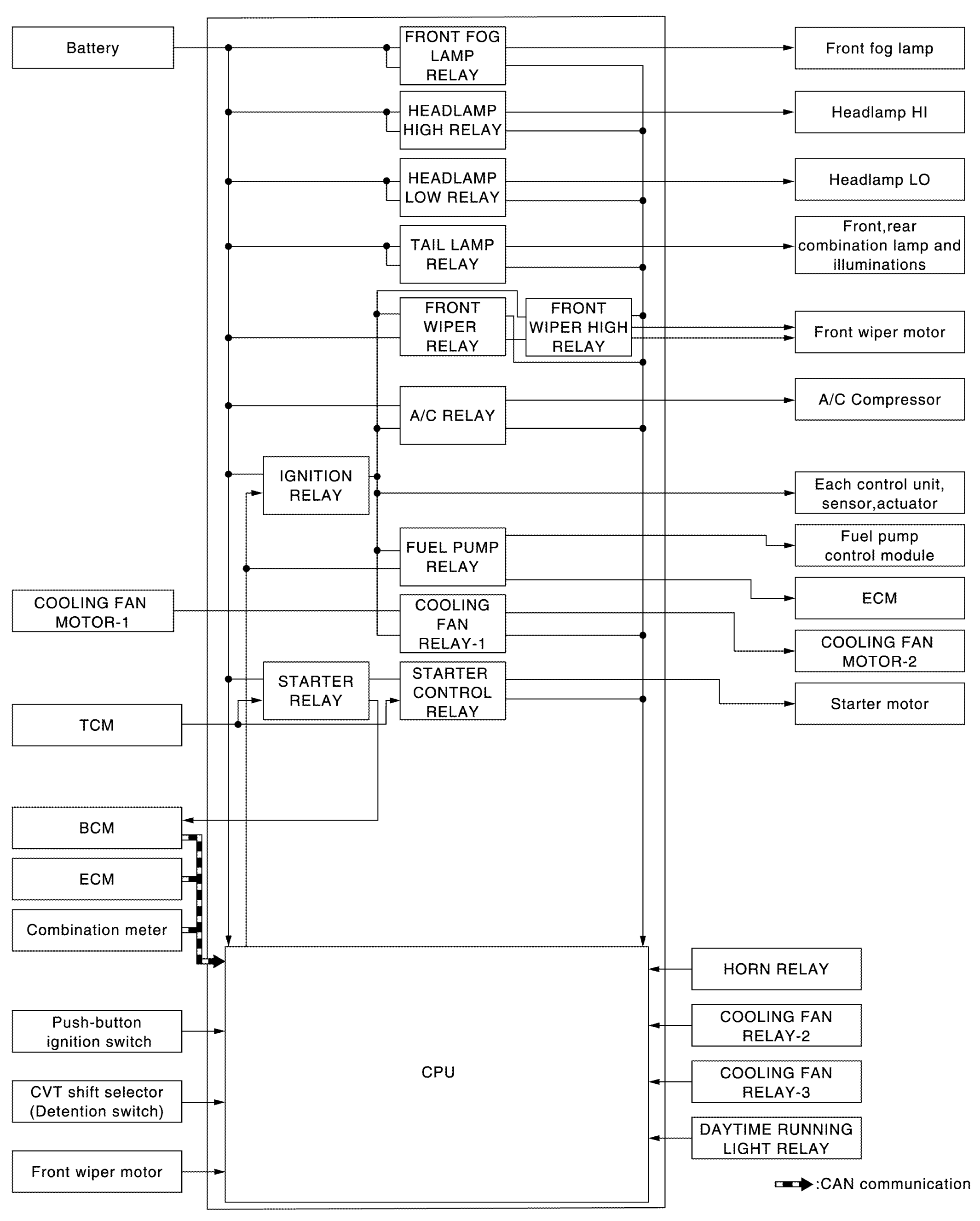

Relay Control System System Diagram
›
Notes
Relay Control System System Diagram: Notes
Fig 1: Identifying Relay Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
