VARIABLE INDUCTION AIR SYSTEM: System Description
›
Vacuum Hose Drawing
Vacuum Hose Drawing

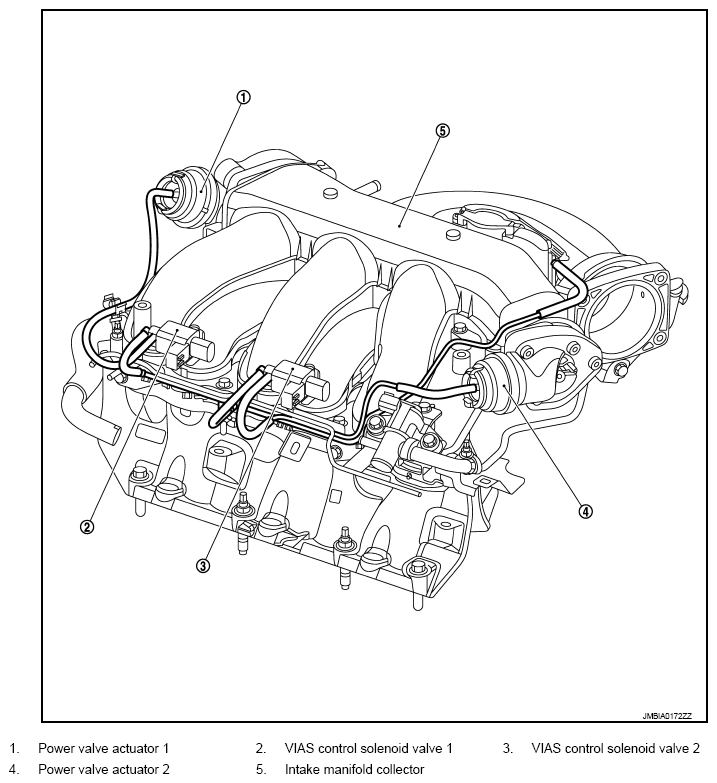

Fig 1: Identifying Intake Manifold Collector, Power Valve Actuator & VIAS Control Solenoid Valve 1, 2
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
