Water Hose
›
Exploded View
Exploded View

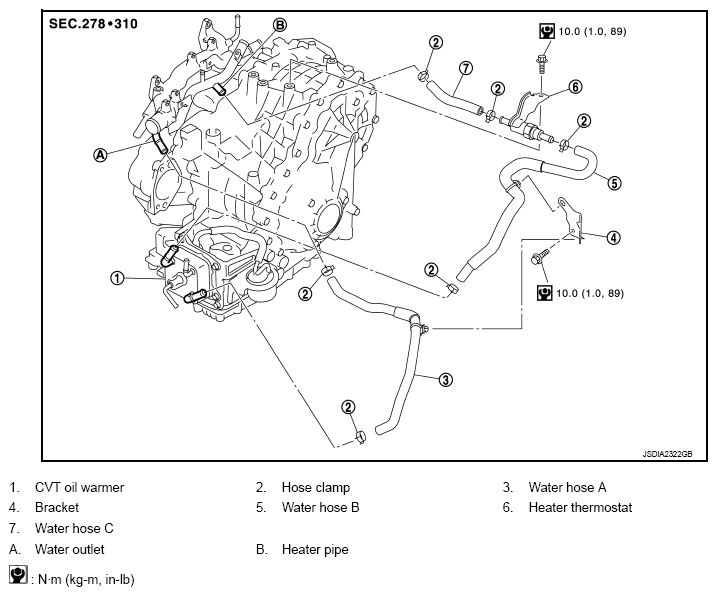

Fig 1: Exploded View Of Water Hose With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
