Exploded View

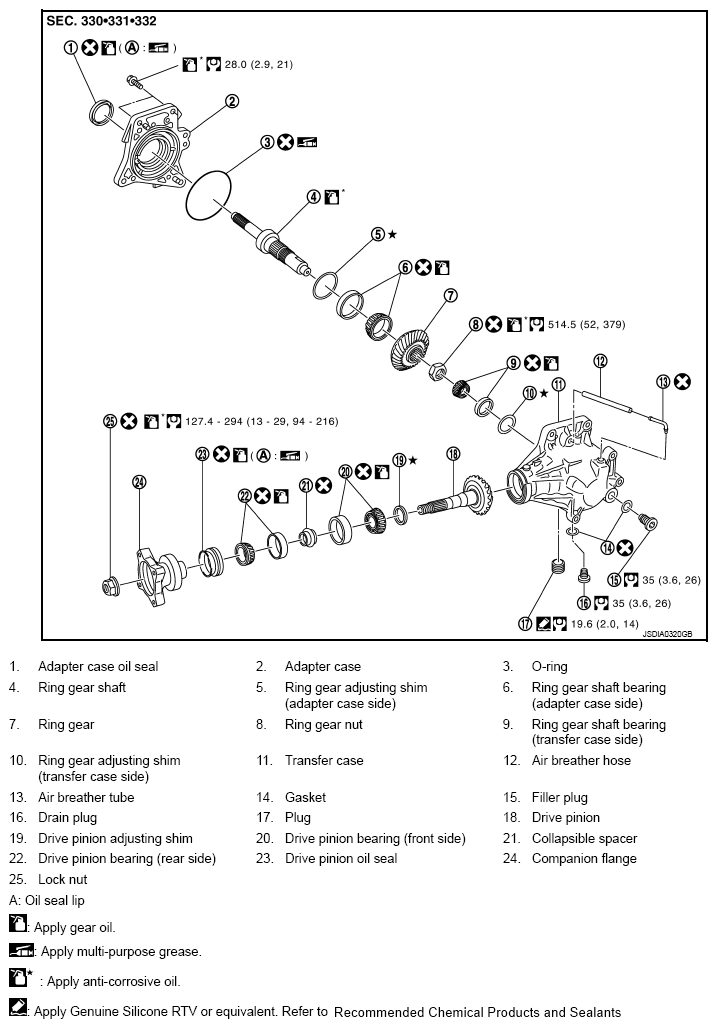

Fig 1: Exploded View Of Adapter Case With Torque Specifications

G08175219

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
