Ignition Timing
›
Method A
Method A
Attach timing light to loop wire (1) as shown in the figure.

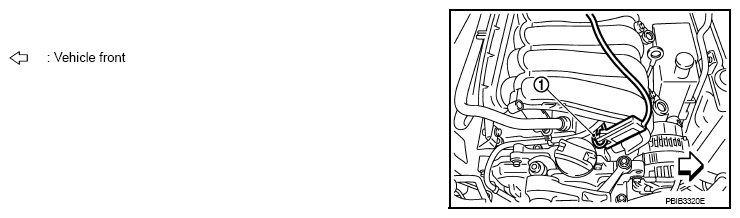

Fig 1: Identifying Loop Wire Of Timing Light
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.

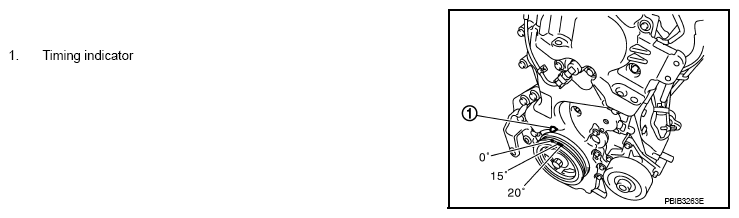

Fig 2: Checking Ignition Timing Using Timing Indicator
Courtesy of NISSAN NORTH AMERICA, INC.
