Engine Control System - Introduction (MR20DE) (CALIFORNIA)
›
Service Information
›
Engine Control System
›
Schematic
Engine Control System: Schematic

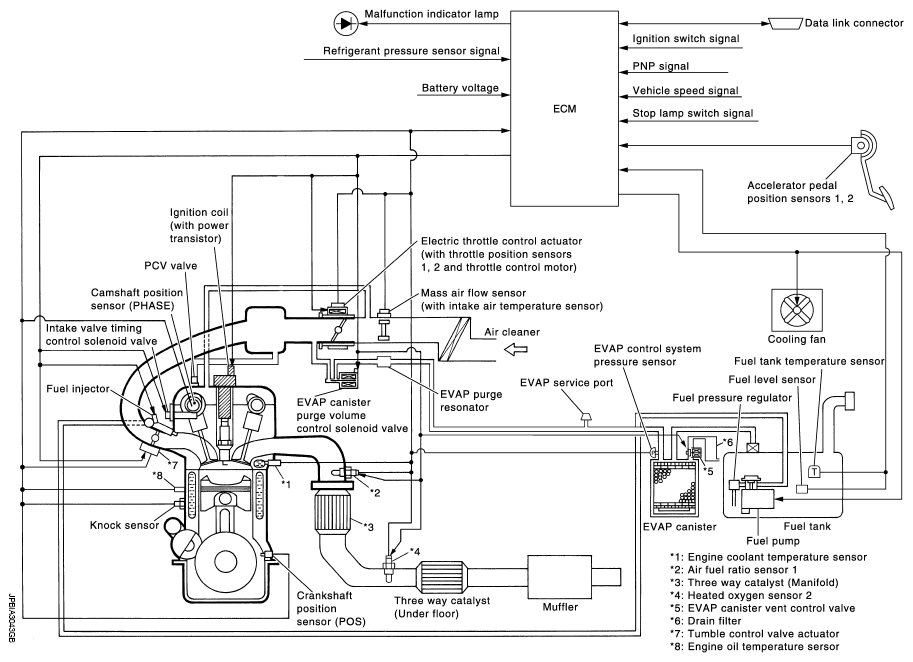

Fig 1: Engine Control System Schematics
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
