Intelligent Key System
›
Trouble Diagnosis Procedure
›
Work Flow
Work Flow

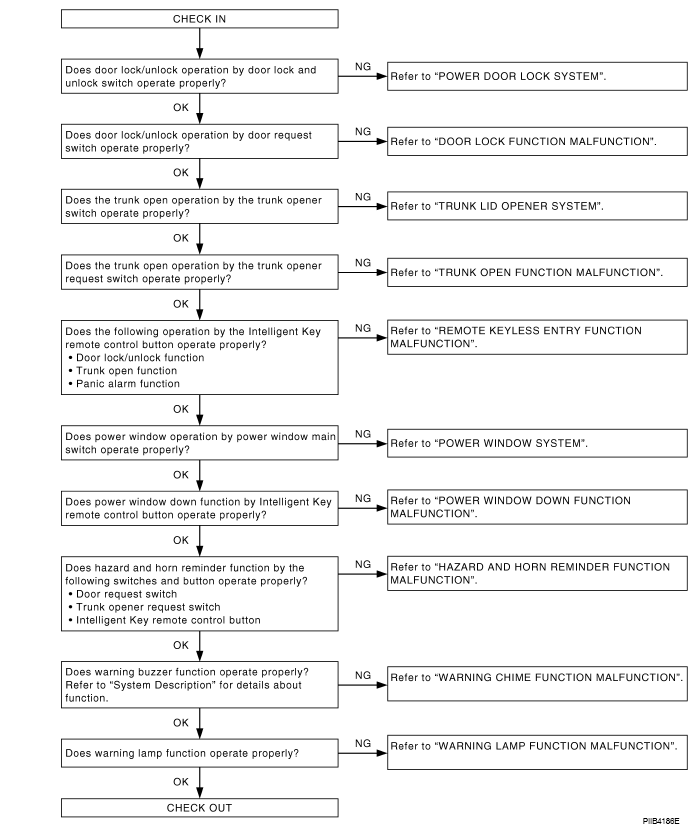

Fig 1: Identifying Trouble Diagnosis Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
