BCM (Body Control Module): Schematic

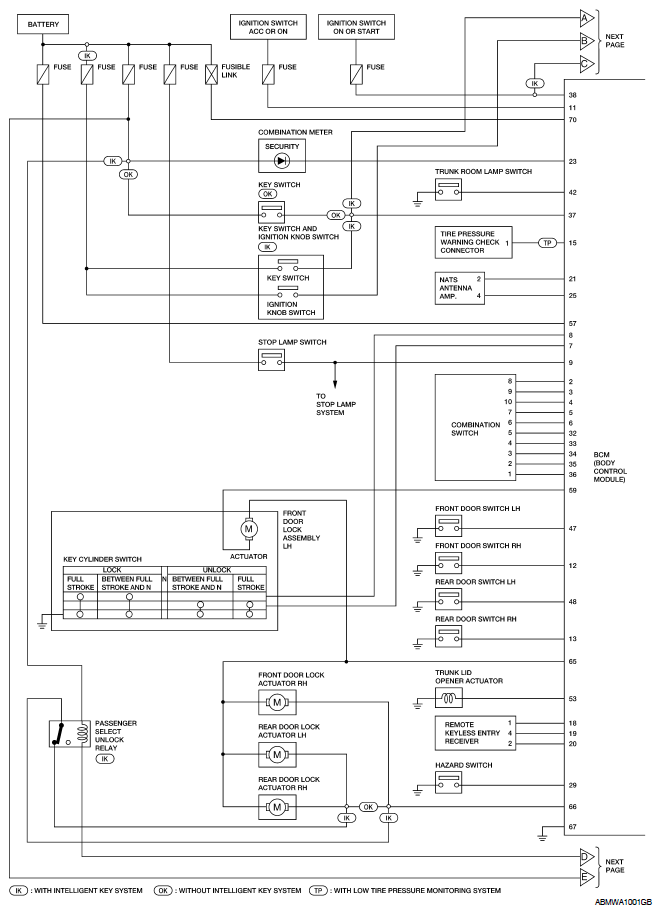

Fig 1: Body Control Module Schematic (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

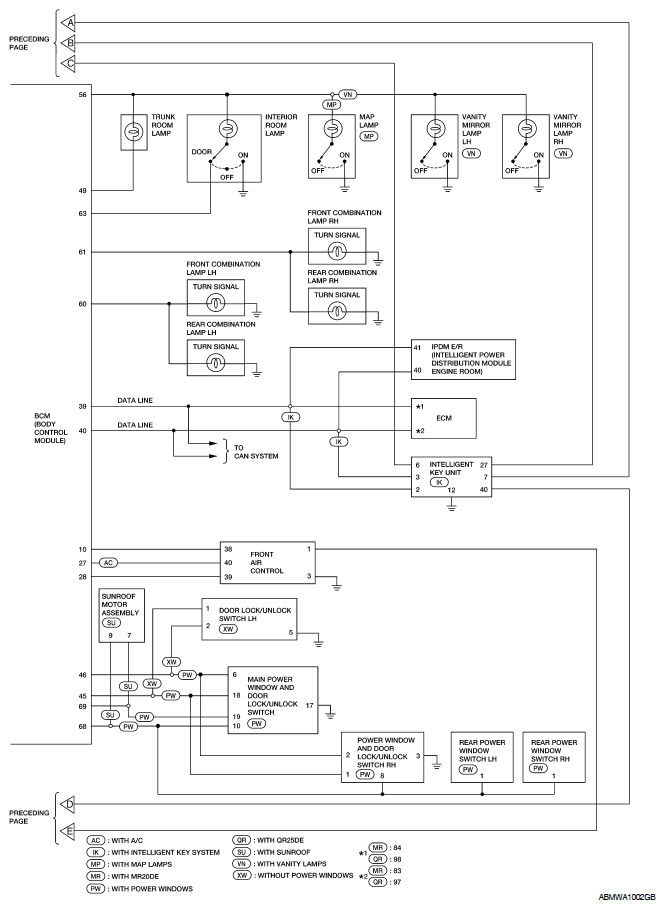

Fig 2: Body Control Module Schematic (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
