CAN Communication Signal Chart

Refer to , "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to , "ABBREVIATION LIST " for the abbreviations of the connecting units.

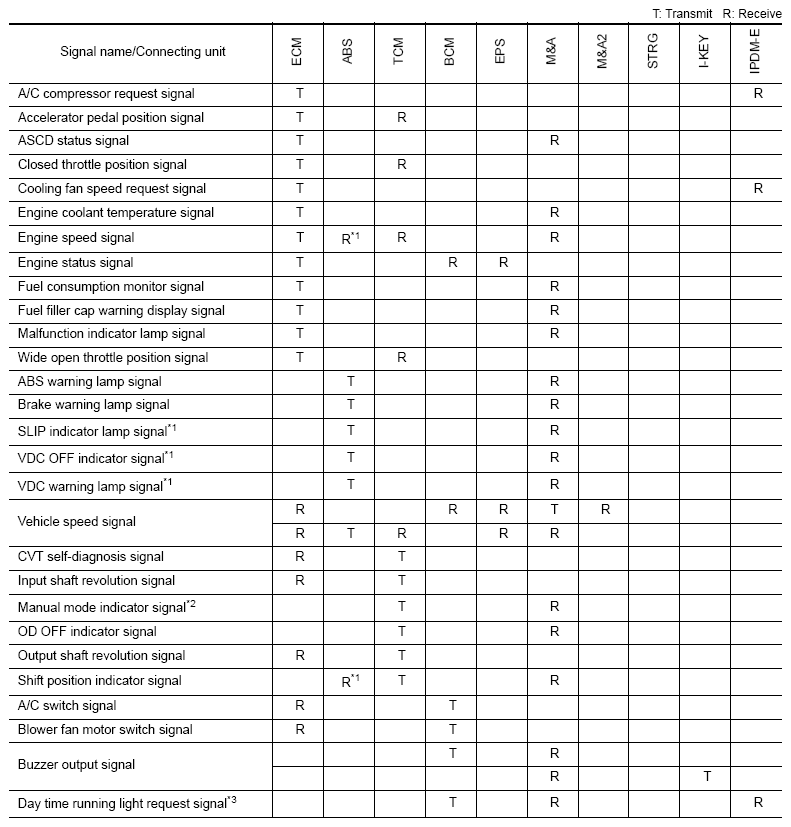

Fig 1: Identifying CAN Communication Signal Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

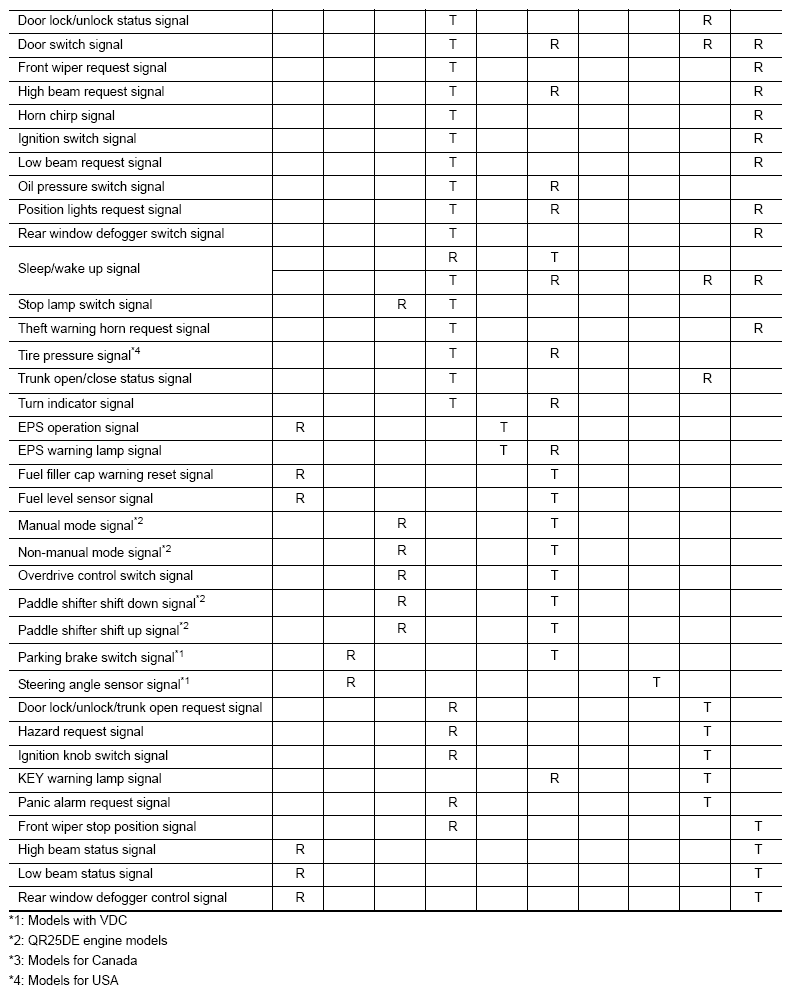

Fig 2: Identifying CAN Communication Signal Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
