Intelligent Key System: Schematic

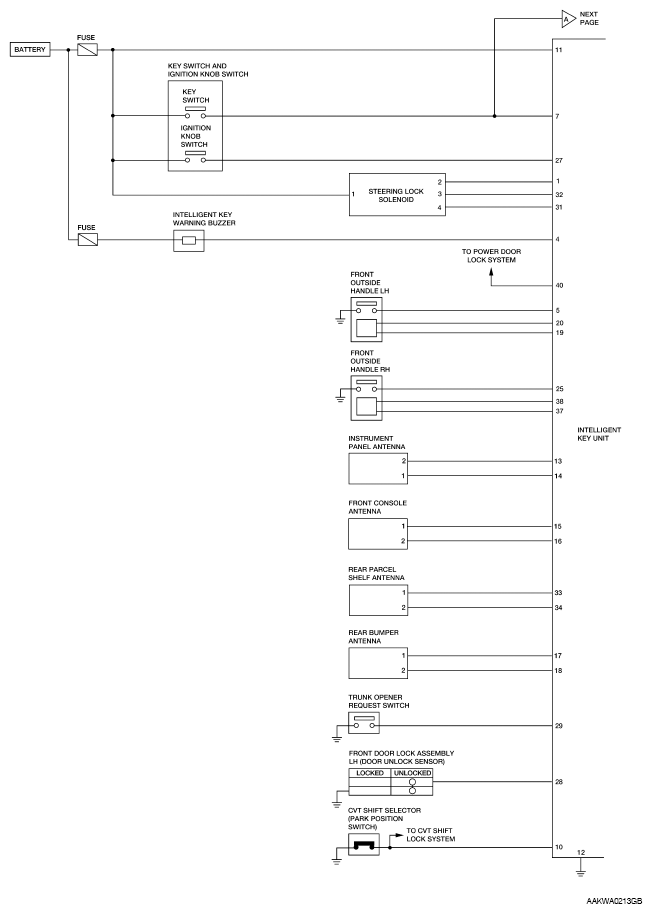

Fig 1: Identifying Intelligent Key System Schematic (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

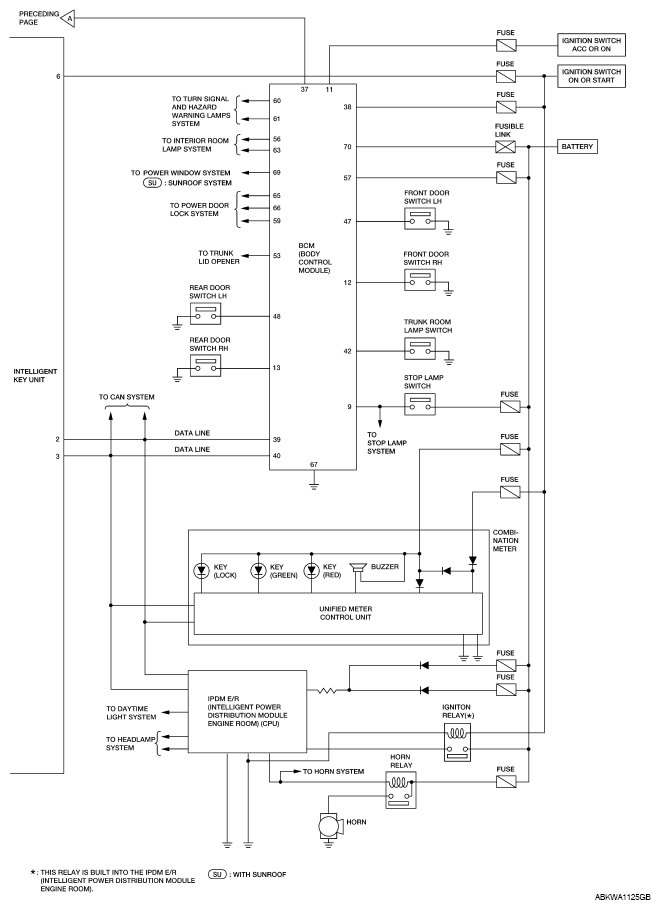

Fig 2: Identifying Intelligent Key System Schematic (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
