Wiring Diagram - Intelligent Key -

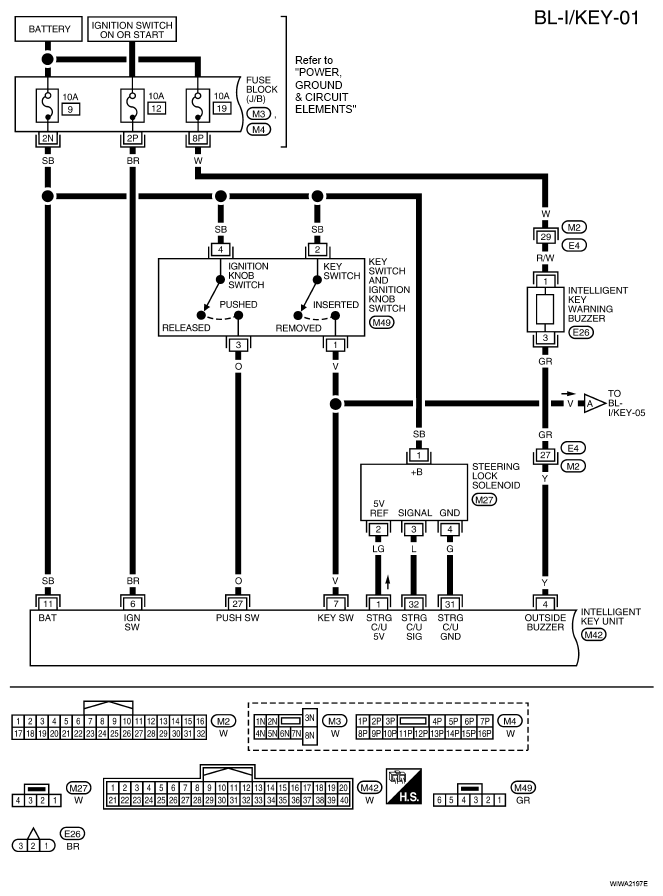

Fig 1: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-01)

Courtesy of NISSAN NORTH AMERICA, INC.

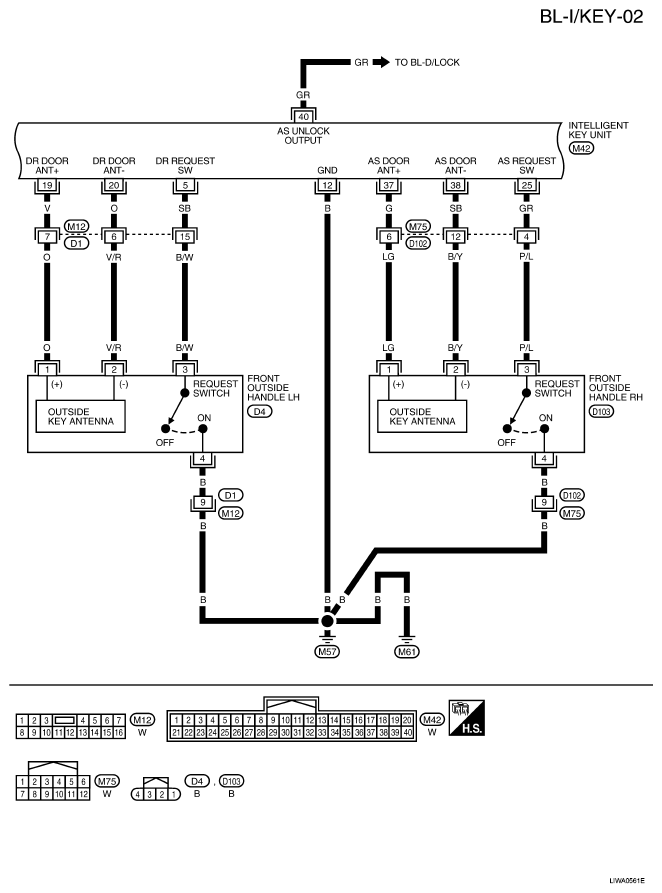

Fig 2: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-02)

Courtesy of NISSAN NORTH AMERICA, INC.

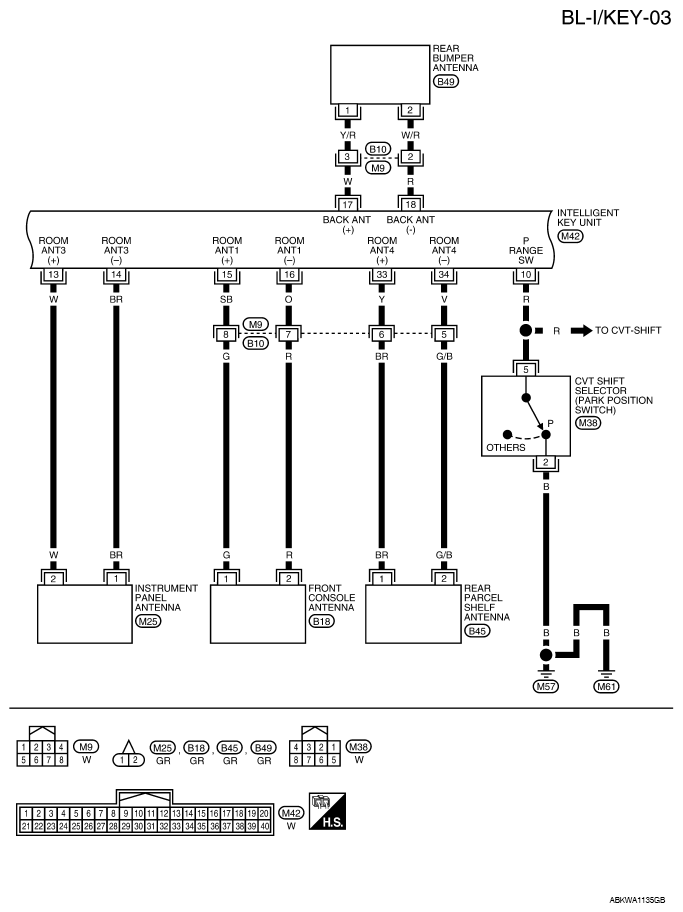

Fig 3: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-03)

Courtesy of NISSAN NORTH AMERICA, INC.

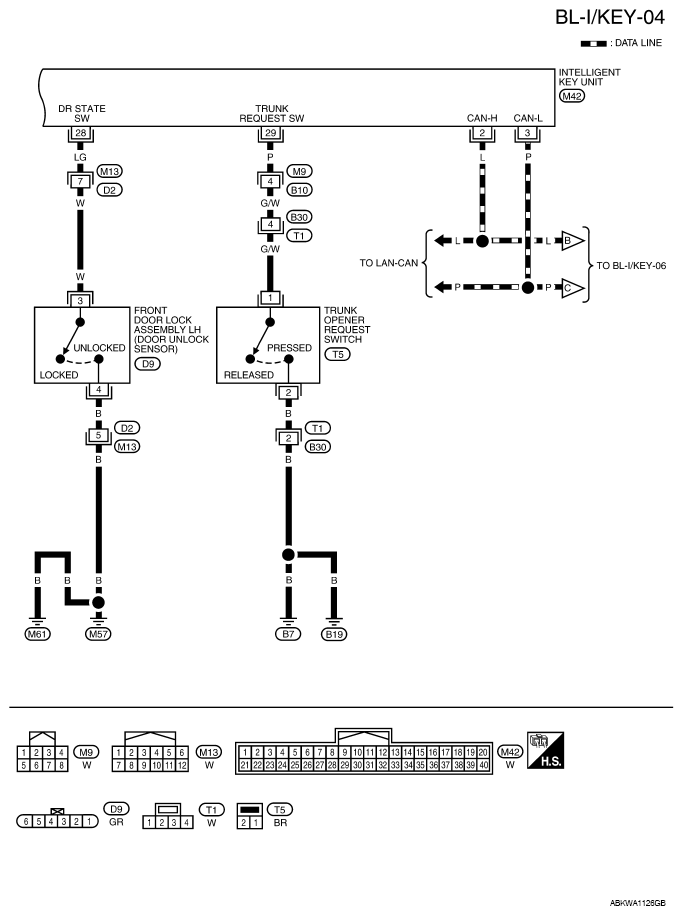

Fig 4: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-04)

Courtesy of NISSAN NORTH AMERICA, INC.

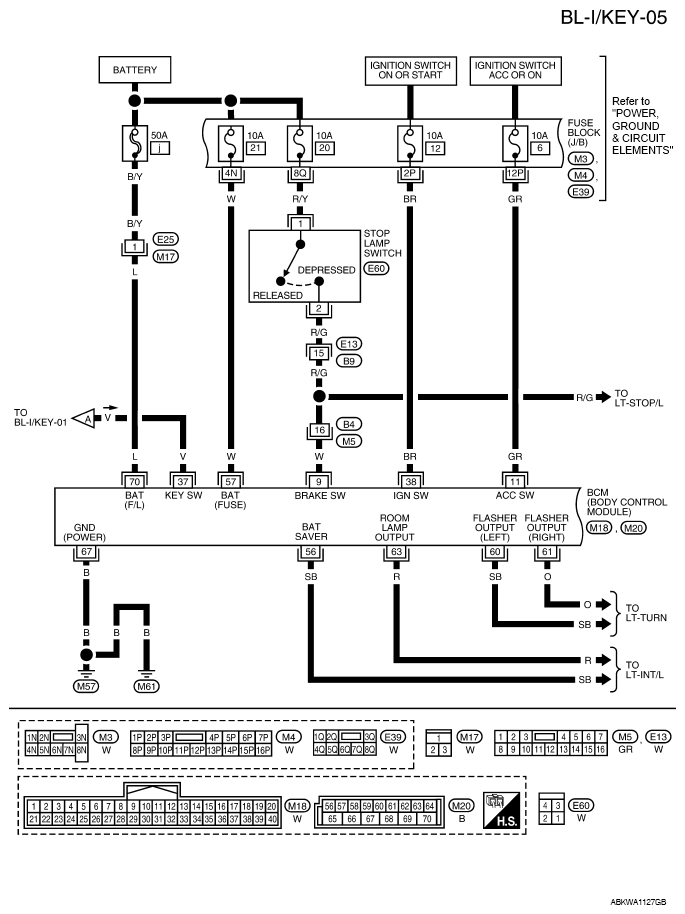

Fig 5: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-05)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-06)

Courtesy of NISSAN NORTH AMERICA, INC.

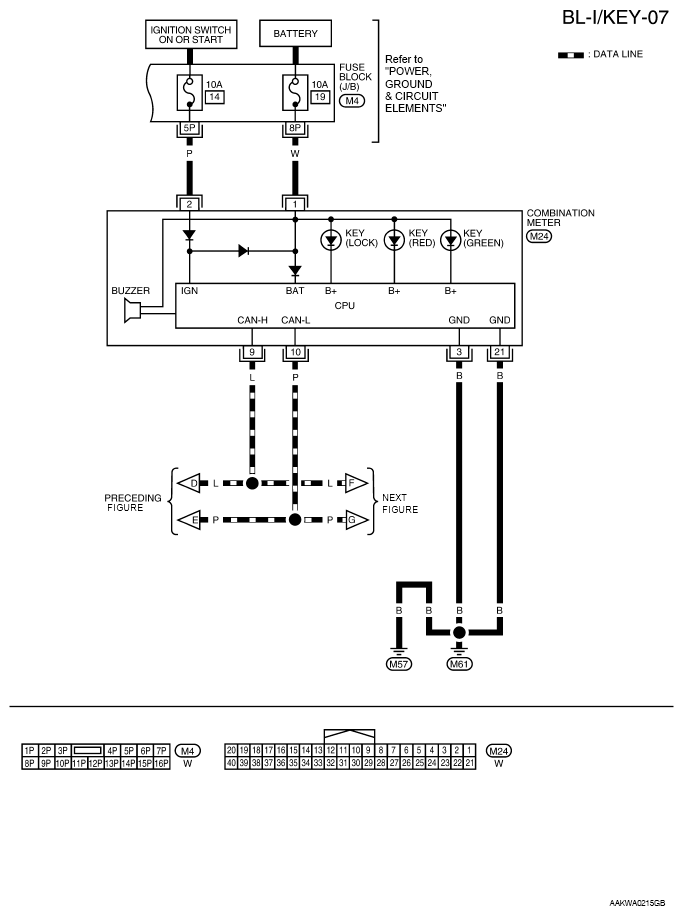

Fig 7: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-07)

Courtesy of NISSAN NORTH AMERICA, INC.

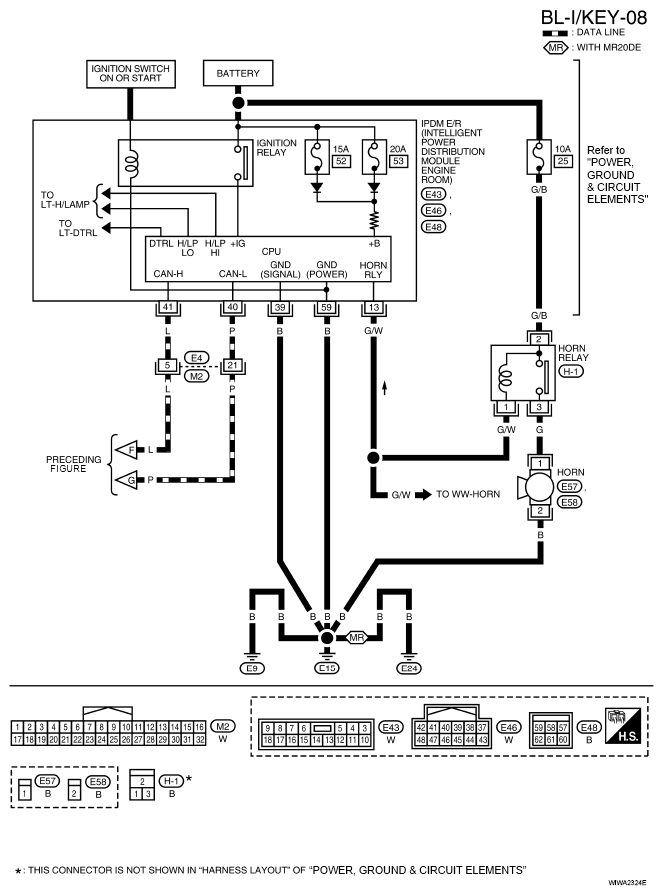

Fig 8: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-08)

Courtesy of NISSAN NORTH AMERICA, INC.
