Remote Keyless Entry System: Schematic

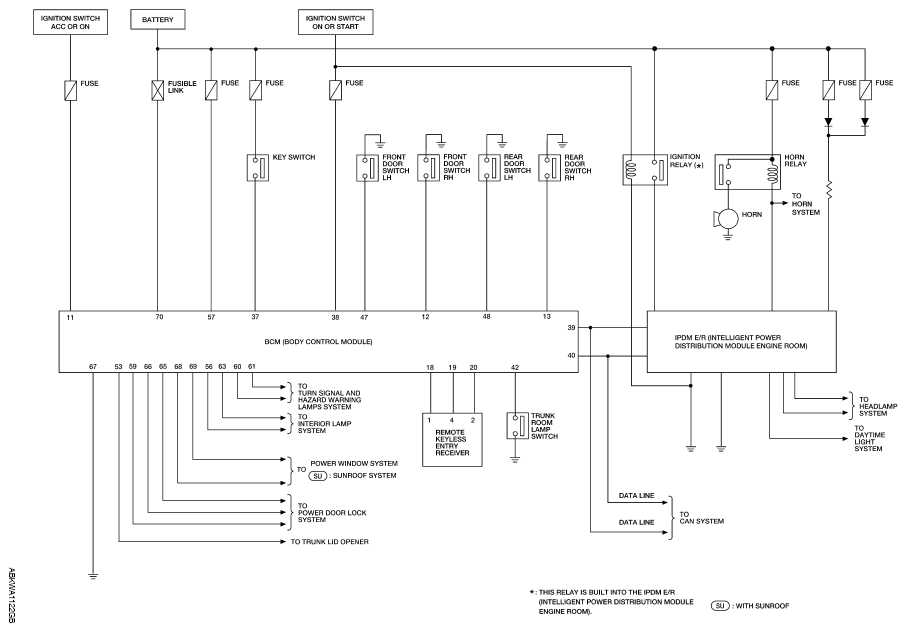

Fig 1: Identifying Remote Keyless Entry System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
