Front Seat
›
Exploded View
›
Driver Seat
Driver Seat

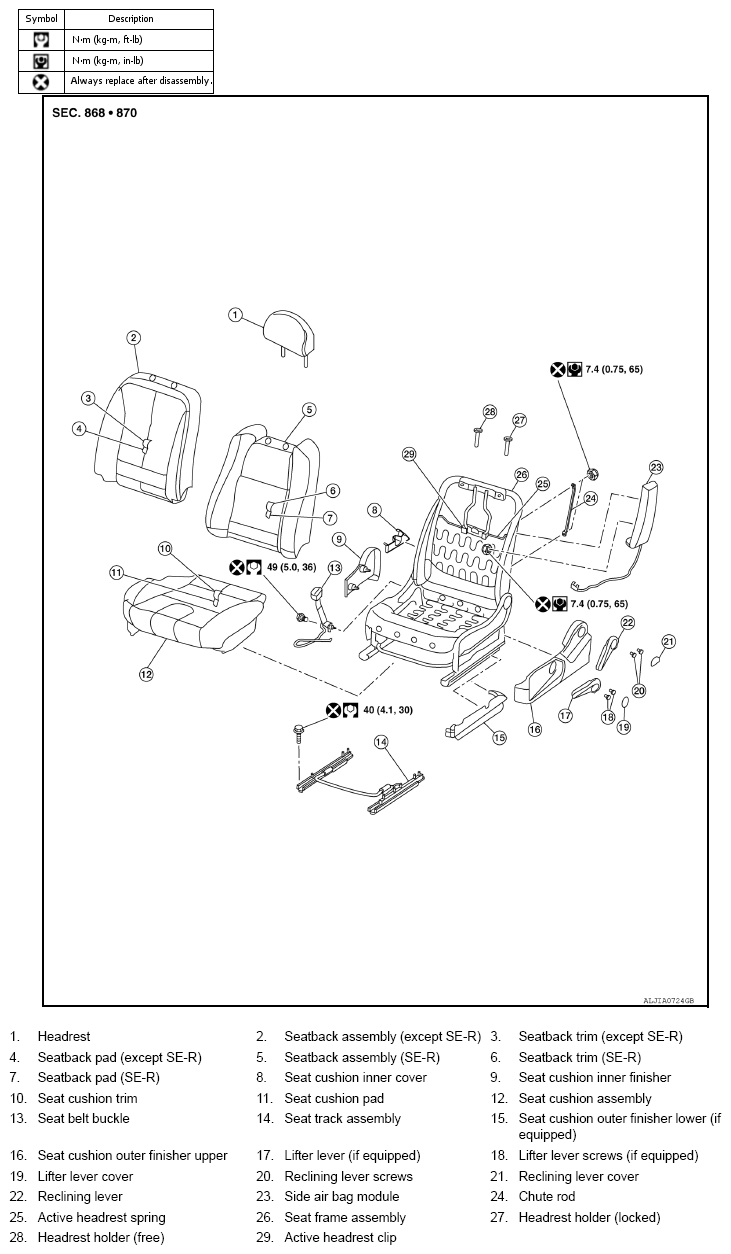

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
