Rear Seat
›
Exploded View - Fixed Back Seat
›
Fixed Back Seat
Fixed Back Seat

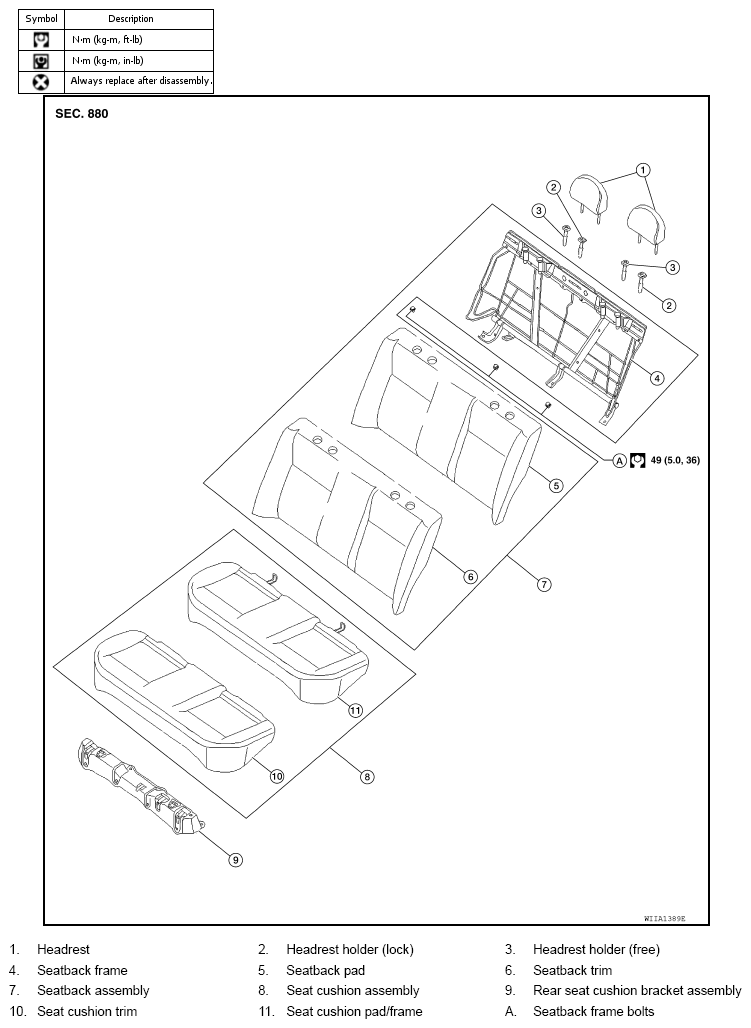

Fig 1: Exploded View Of Fixed Back Seat With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
