Fitting Adjustment: Notes

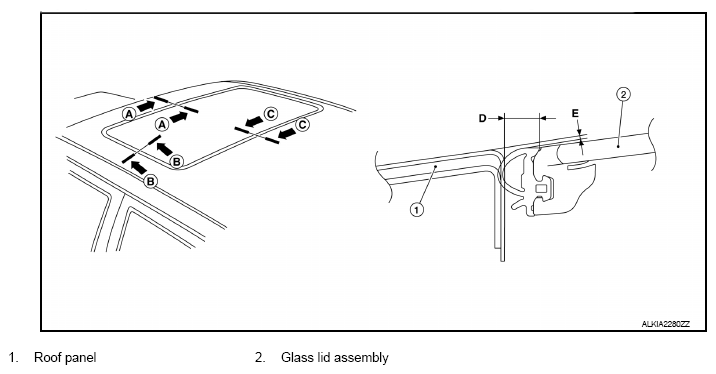

Inspect then measure the gap and surface height difference between the roof panel and glass lid assembly; compare to specifications. Determine which procedure to follow based on results of measurements.
CAUTION:
- Always work with a helper.
- Handle sunroof lid assembly with care to prevent damage.
NOTE:
- For easier and more accurate installation, always mark each point before removal.
- After any adjustment, check sunroof operation and sunroof lid assembly alignment.
| Unit: mm (in) | ||
|---|---|---|
| Portion | Gap (D) | Surface height difference (E) |
| (A - A) | 5.4 (0.21) | - 0.8 +0.8/--1.5/(--0.03 +0.03/--0.06) |
| (B - B) | 5.4 (0.21) | - 0.8 ± 1.5 (--0.03 ± 0.06) |
| (C - C) | 5.4 (0.21) | - 0.8 ± 1.5 (--0.03 ± 0.06) |
