Removal and Installation: Notes

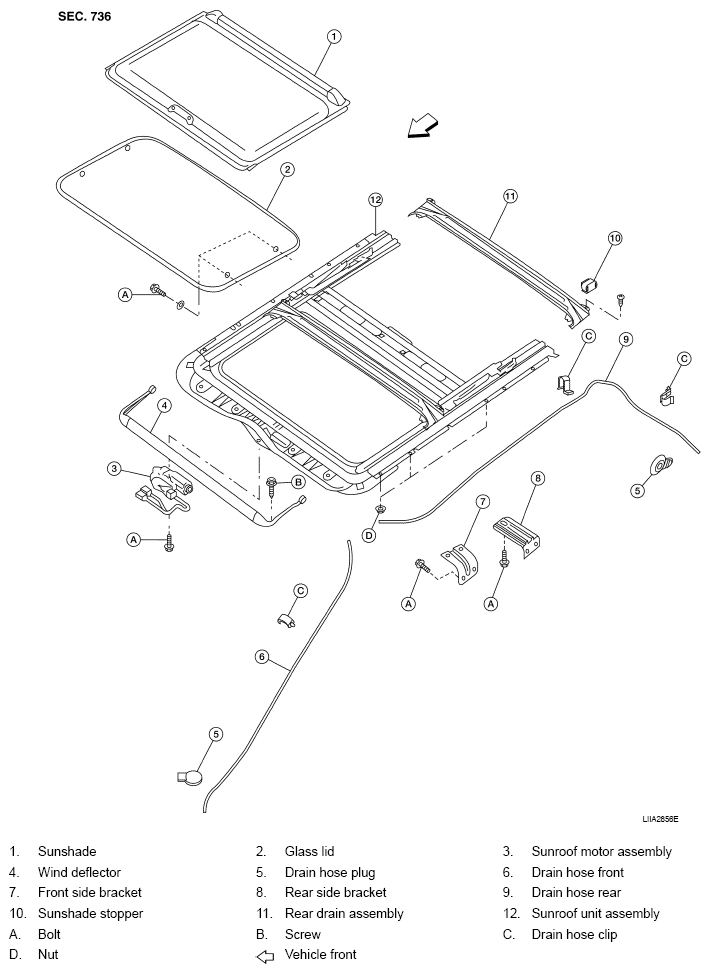

Fig 1: Exploded View Of Sunroof Components

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

After installation or any adjustment, check clearances for sunroof operation and glass lid alignment.
Handle glass lid with care to prevent damage.
Fully close the glass lid before removal, then do not operate sunroof motor assembly after removal.
When removing sunroof unit assembly, use shop cloths to protect the seats and trim from damage.
Always work with a helper.

NOTE: For easy installation, mark each point before removal.
