Power Window System: Schematic

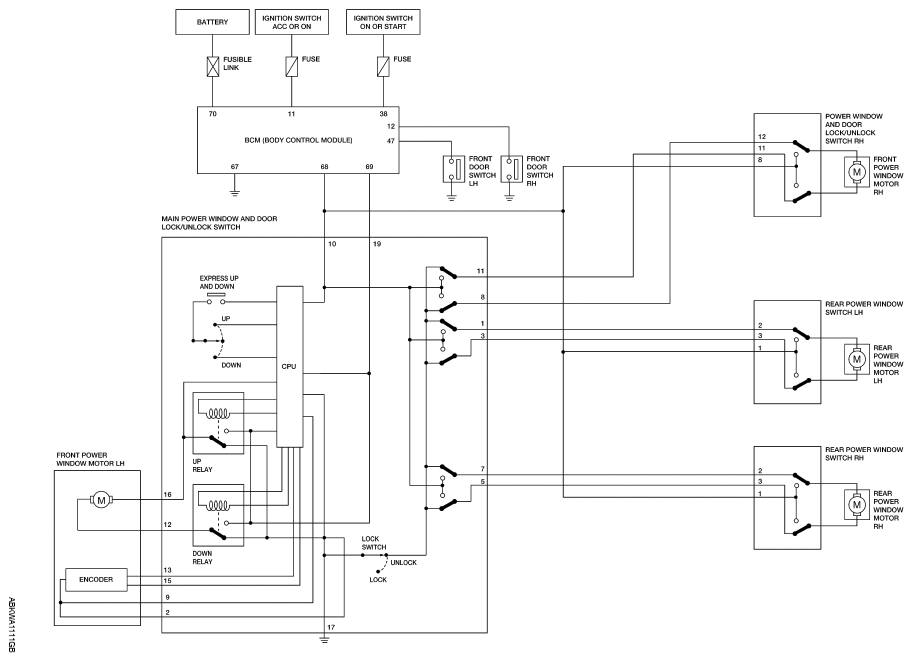

Fig 1: Identifying Power Window System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
