Parking Brake Control: Component

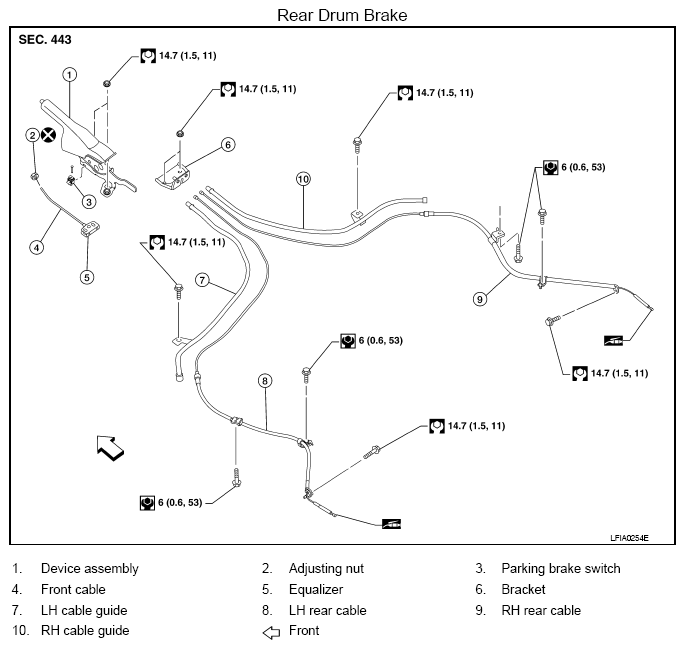

Fig 1: Parking Brake Control Components With Torque Specifications (Drum)

Courtesy of NISSAN NORTH AMERICA, INC.

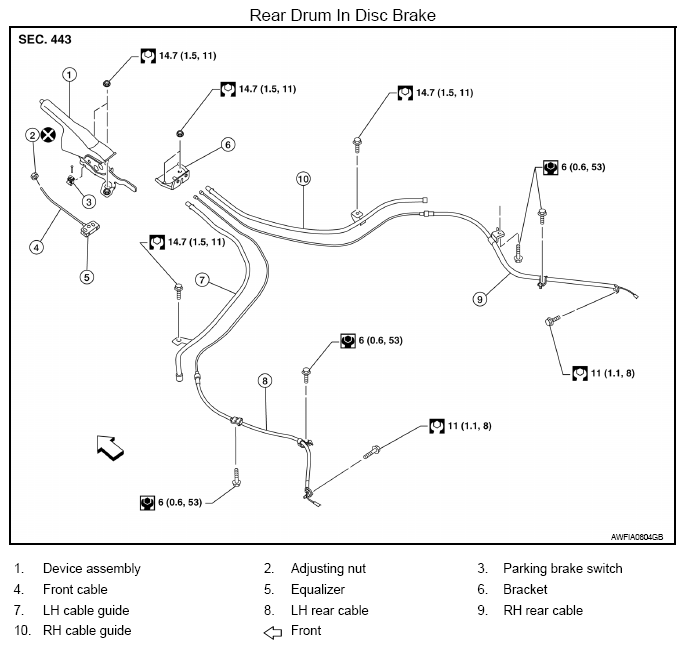

Fig 2: Parking Brake Control Components With Torque Specifications (Disc/Drum)

Courtesy of NISSAN NORTH AMERICA, INC.
