Sentra SE-R
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System (VDC/TCS/Abs)
›
Service Information
›
System Description
›
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

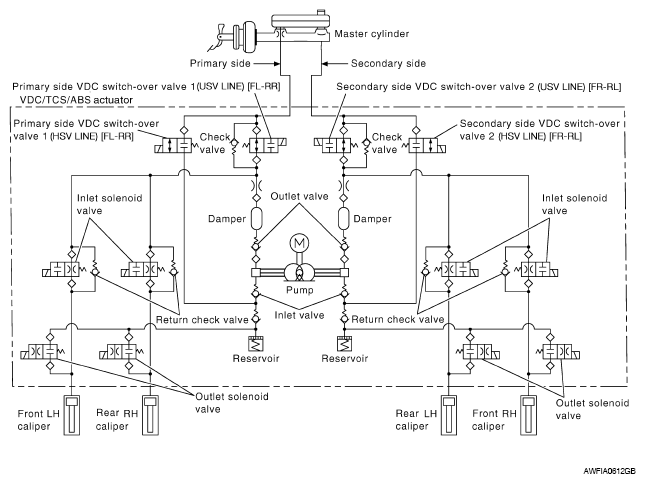

Fig 1: VDC/TCS System Hydraulic Circuit Diagram
