Home › Nissan-Datsun › 2012 › Sentra SE-R › Repair and Diagnosis › Drivelines & Axles › Axle Shafts › Front Axle › Service Information › Front Wheel Hub › Removal and Installation › Component

Removal and Installation: Component

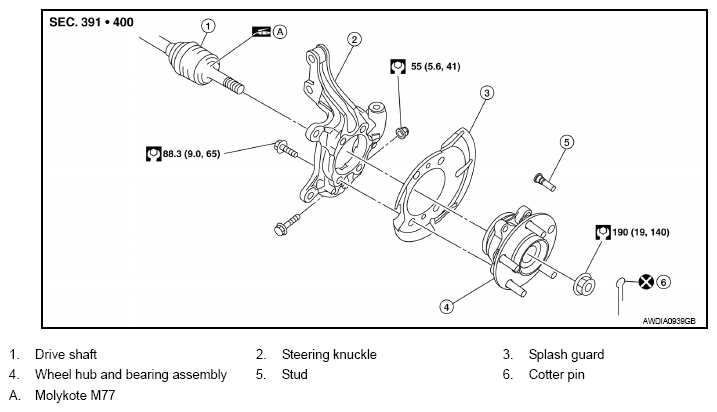

Fig 1: Exploded View Of Wheel Hub Assembly With Torque Specifications
G08180181Courtesy of NISSAN NORTH AMERICA, INC.
