Exploded View (QR25DE Battery Tray)
Exploded View (QR25DE Battery Tray)

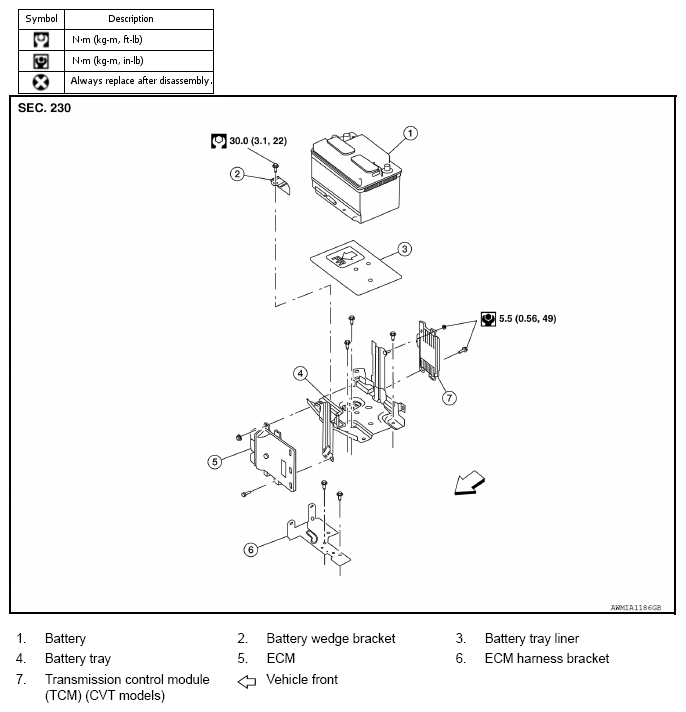

Fig 1: Exploded View Of Battery With Torque Specifications (QR25DE Battery Tray)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
