Disassembly and Assembly: Notes

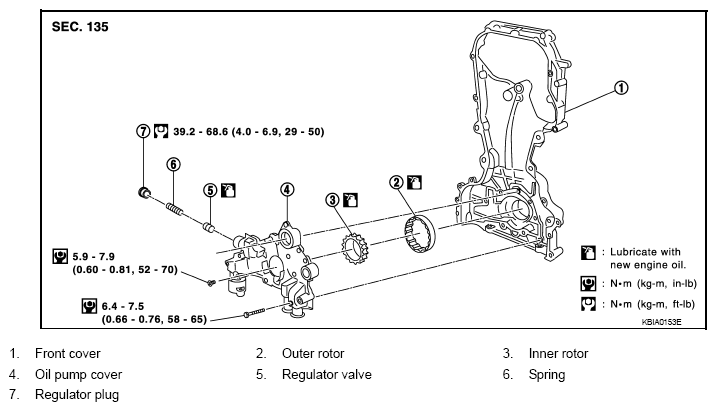

Fig 1: Oil Pump Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Before installation, apply new engine oil to the parts as shown.
