Disassembly and Assembly: Notes

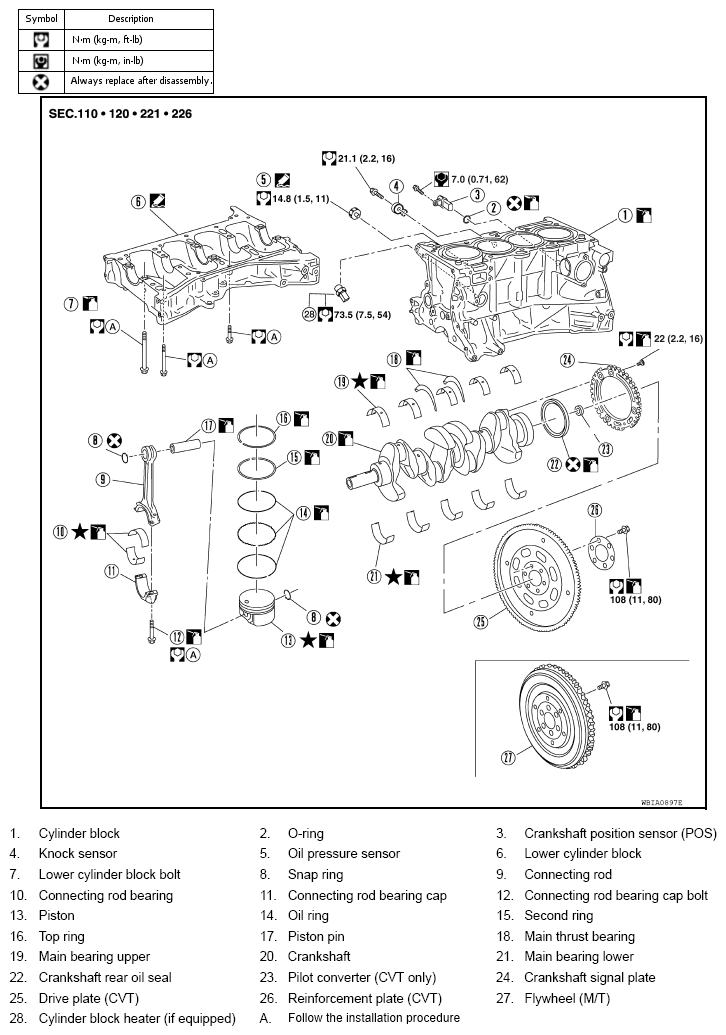

Fig 1: Disassembled View Of Cylinder Block With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
