Removal and Installation: Notes

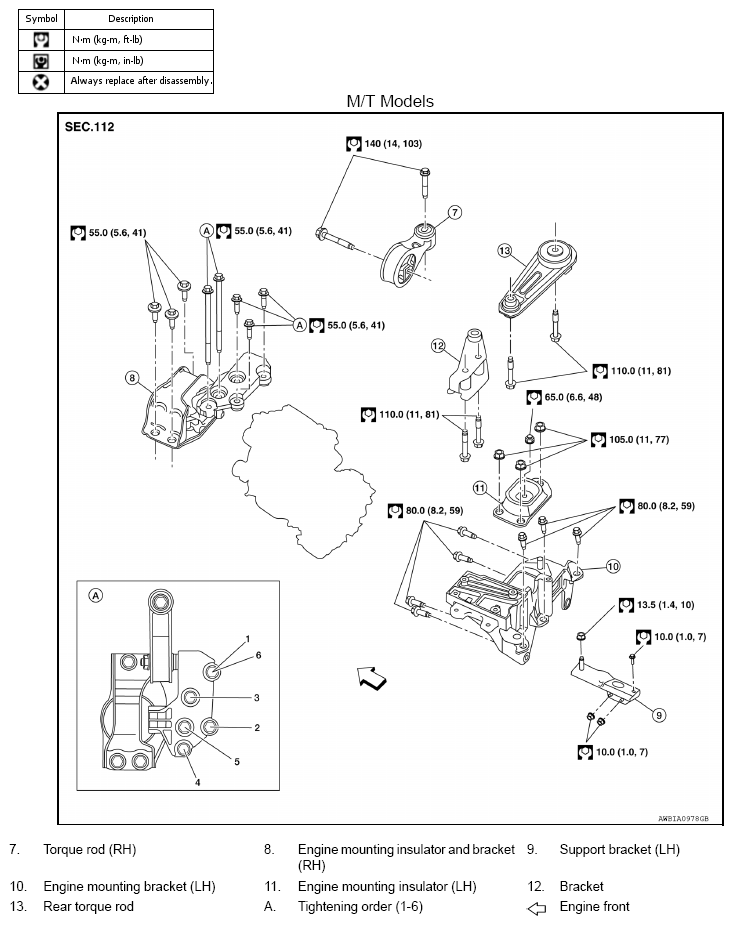

Fig 1: Engine Assembly Replacement Components With Torque Specifications (M/T)

Courtesy of NISSAN NORTH AMERICA, INC.

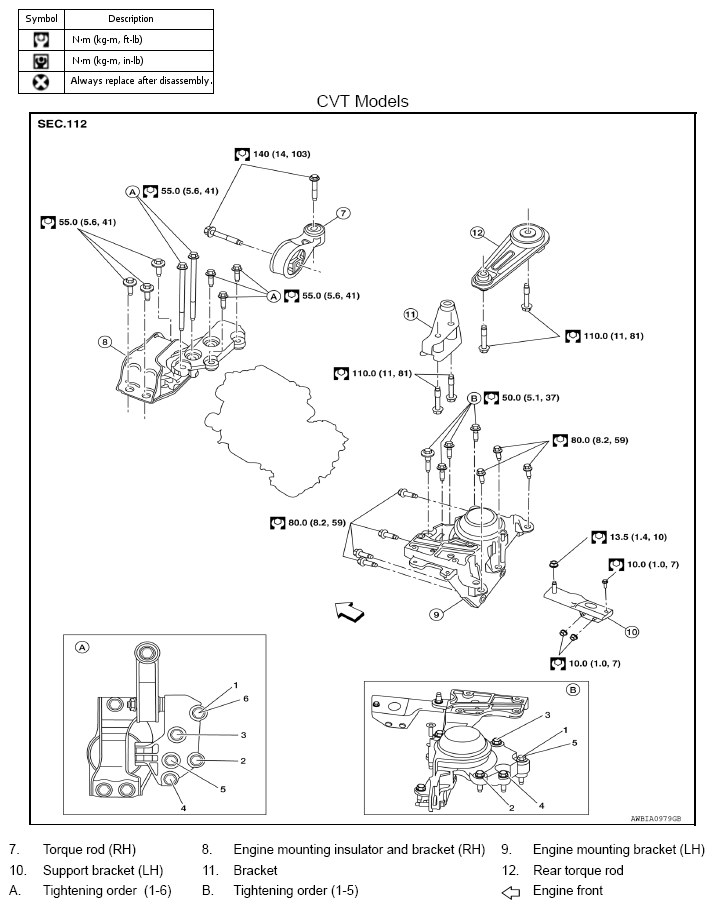

Fig 2: Engine Assembly Replacement Components With Torque Specifications (CVT)

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING:

• Place chocks at the front and back of the rear wheels.
• For engines not equipped with slingers, attach proper slingers and bolts as described in the parts catalog.

CAUTION:

• Do not start working until the exhaust system and coolant are cool.
• If items or work required are not covered by the engine main body information, follow the applicable procedures.
• Use the correct supporting points for lifting and jacking. Refer to "LIFTING POINT " .
• In removing the drive shaft, be careful not to damage the grease seals on the transaxle.
• Before separating the engine and transaxle, remove the crankshaft position sensor (POS) from the assembly.
• Be sure not to damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
