Removal and Installation: Notes

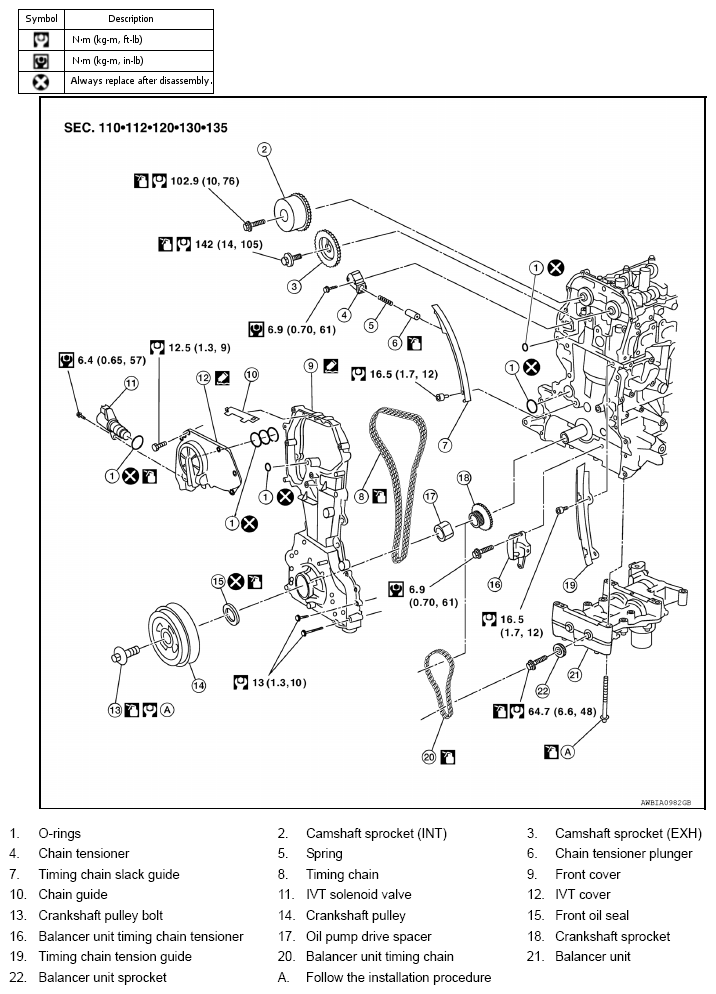

Fig 1: Exploded View Of Timing Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
