Evaporative Emission System
›
Exploded View
Exploded View

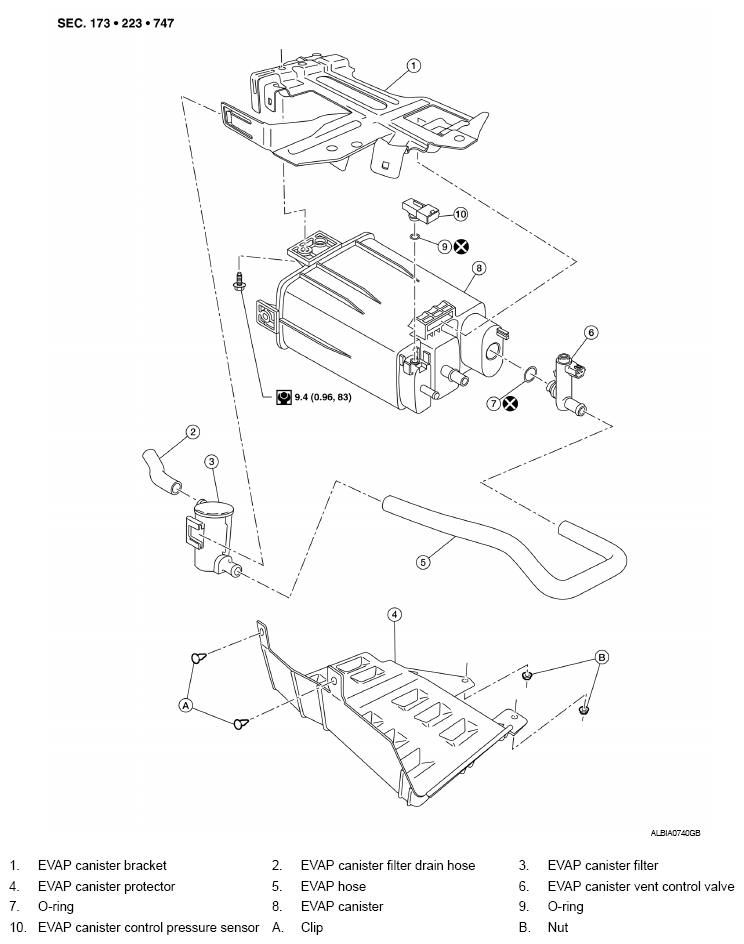

Fig 1: Exploded View Of Evaporative Emission System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
