Gt-R & Versa 1.6L

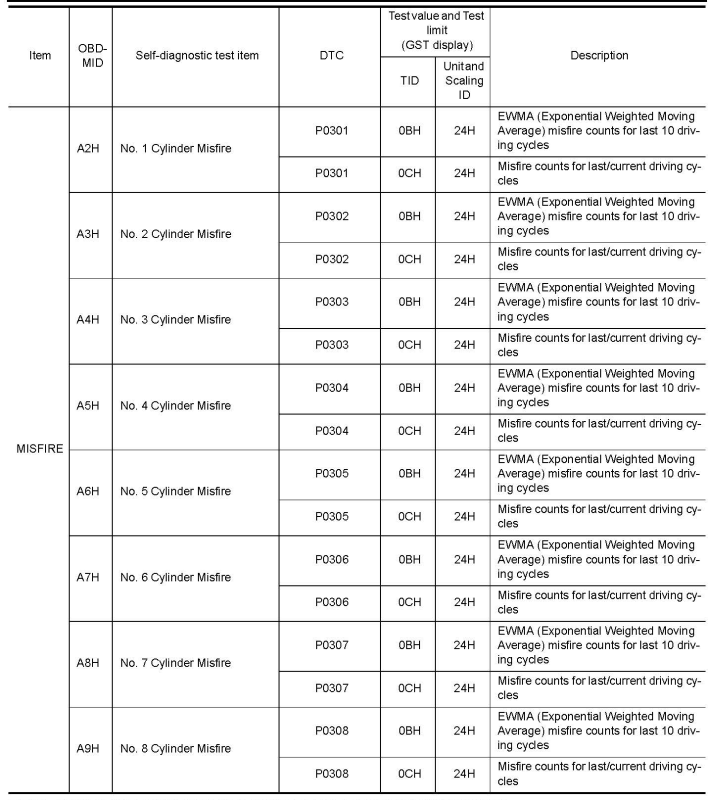

Fig 1: Mode $06 Data For GT-R & Versa 1.6L (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Mode $06 Data For GT-R & Versa 1.6L (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

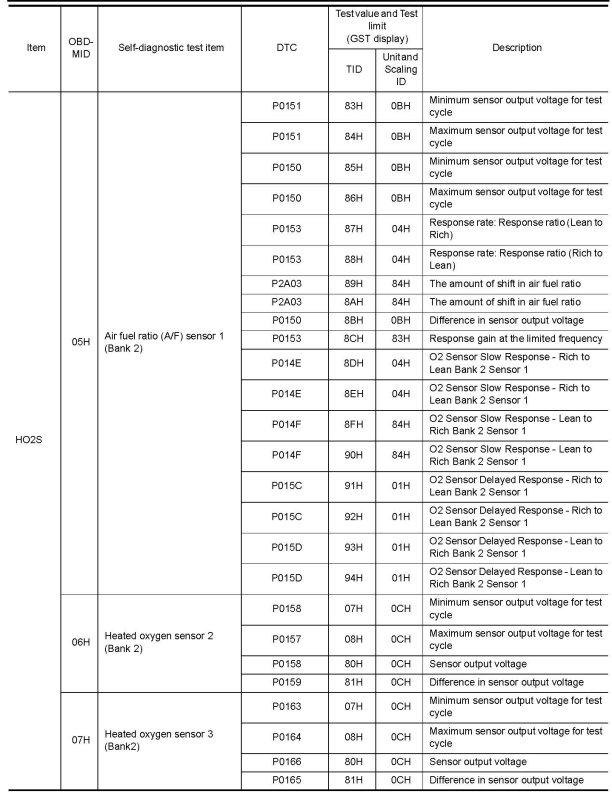

Fig 3: Mode $06 Data For GT-R & Versa 1.6L (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

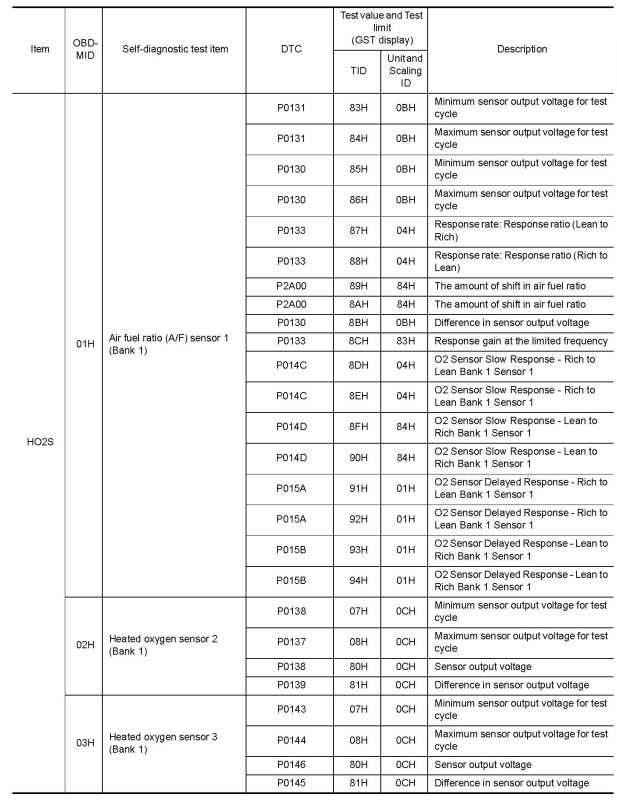

Fig 4: Mode $06 Data For GT-R & Versa 1.6L (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

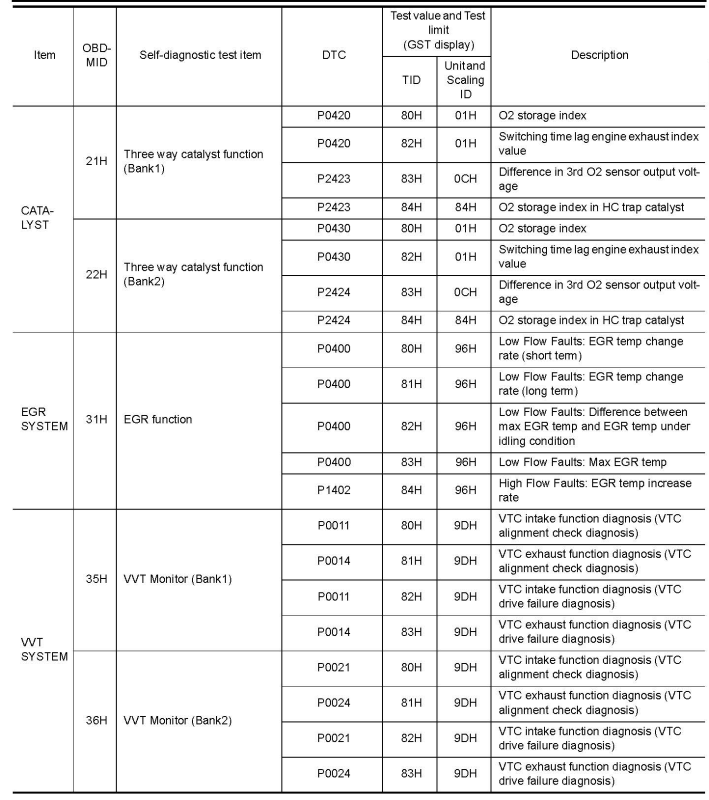

Fig 5: Mode $06 Data For GT-R & Versa 1.6L (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

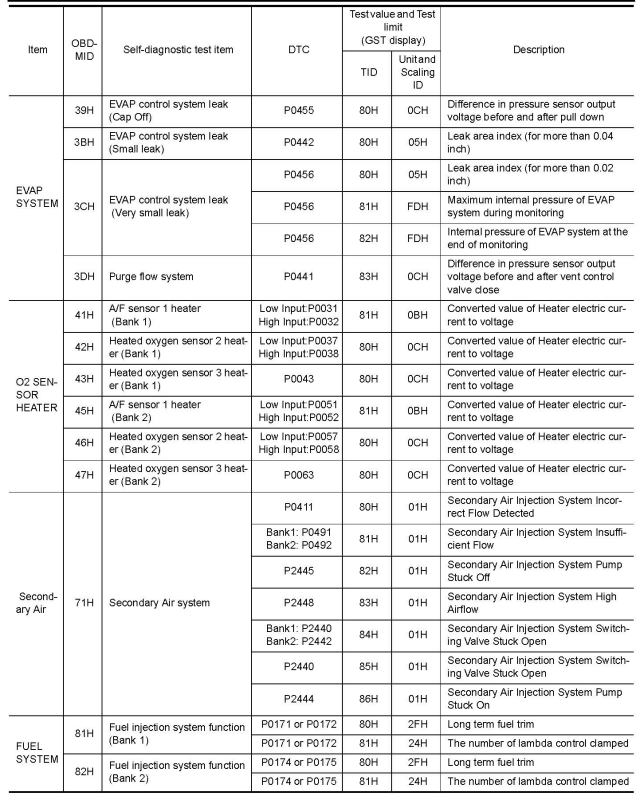

Fig 6: Mode $06 Data For GT-R & Versa 1.6L (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
