DTC P1217: Engine Over Temperature: Wiring Diagram

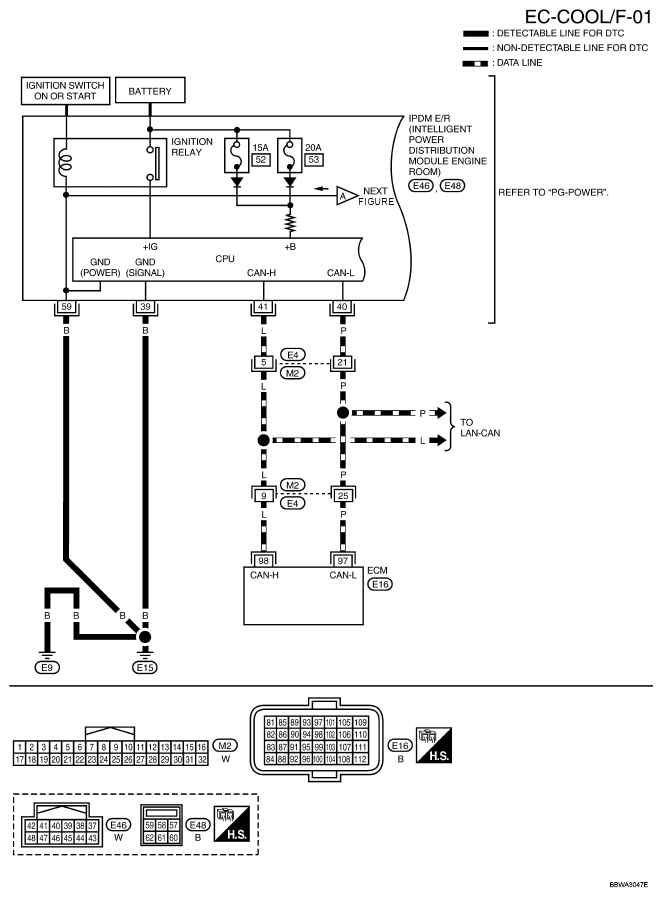

Fig 1: Identifying Wiring Diagram With Connector End View (EC-COOL/F-01)

Courtesy of NISSAN NORTH AMERICA, INC.

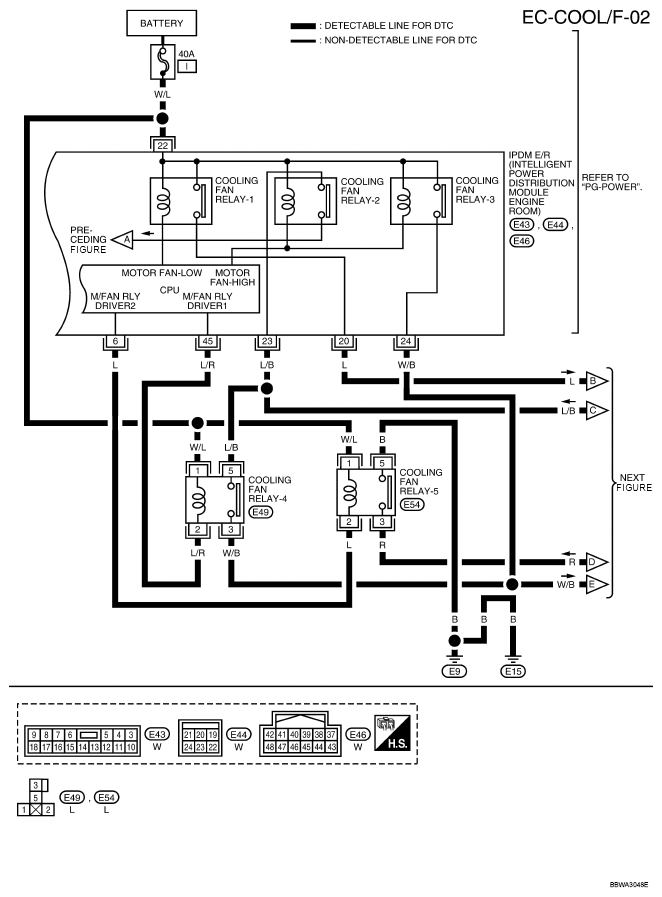

Fig 2: Identifying Wiring Diagram With Connector End View (EC-COOL/F-02)

Courtesy of NISSAN NORTH AMERICA, INC.

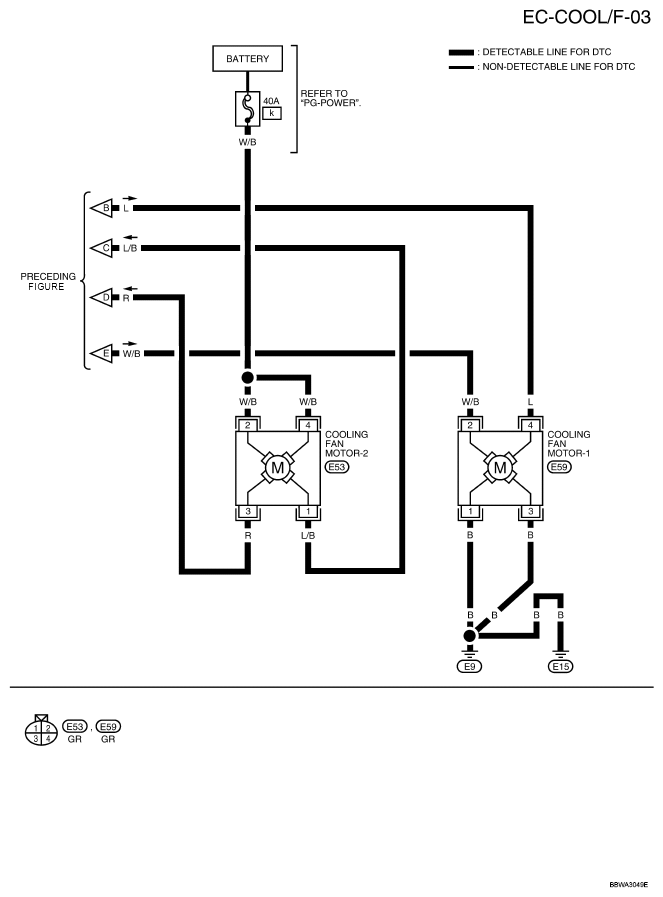

Fig 3: Identifying Wiring Diagram With Connector End View (EC-COOL/F-03)

Courtesy of NISSAN NORTH AMERICA, INC.
