Service Information: Radiator: Component

WARNING: This page is about a different variant/trim than selected.

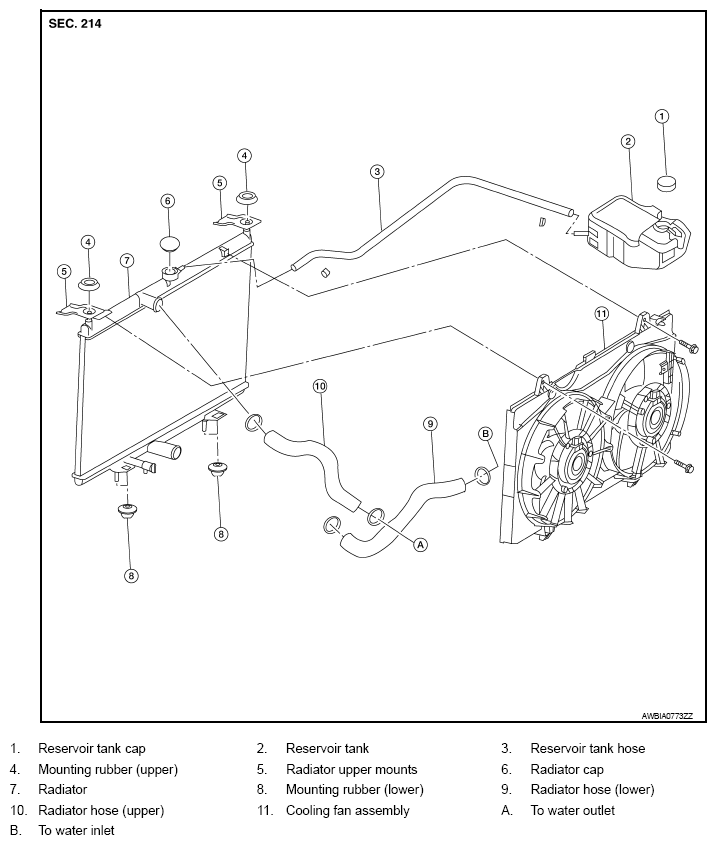

Fig 1: Exploded View Of Radiator Components

G08184825

Courtesy of NISSAN NORTH AMERICA, INC.
