Cross-Sectional View: Notes

WARNING: This page is about a different variant/trim than selected.

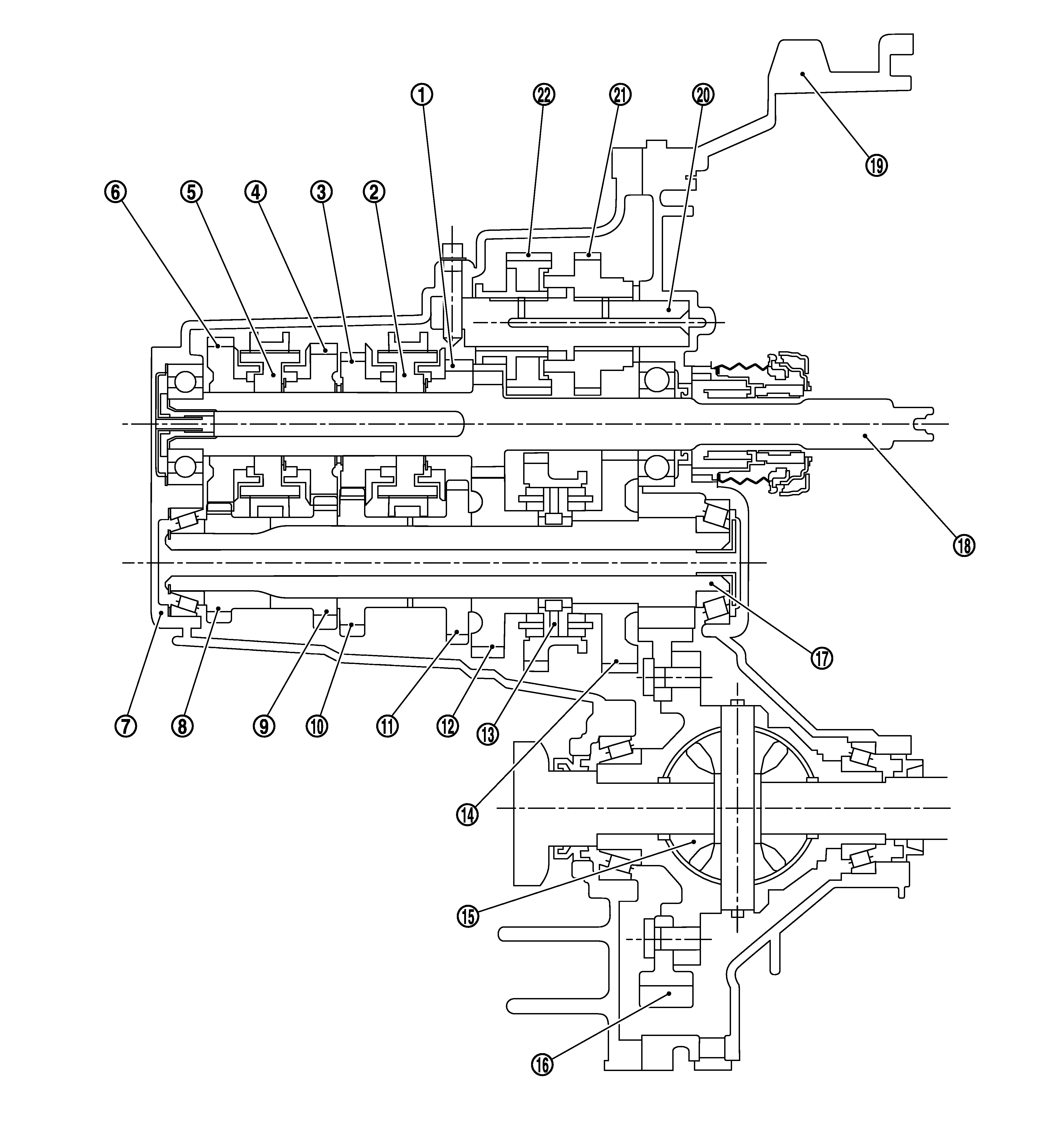

Fig 1: Cross-Sectional View Of Transaxle (MT)
G08179825Courtesy of NISSAN NORTH AMERICA, INC.
