Section 5 (Manual Transmission (RS6F94R))
›
Service Information
›
Transaxle Assembly
›
Disassembly and Assembly
›
Components
›
Final Drive Components
Final Drive Components
WARNING:
This page is about a different variant/trim than selected.

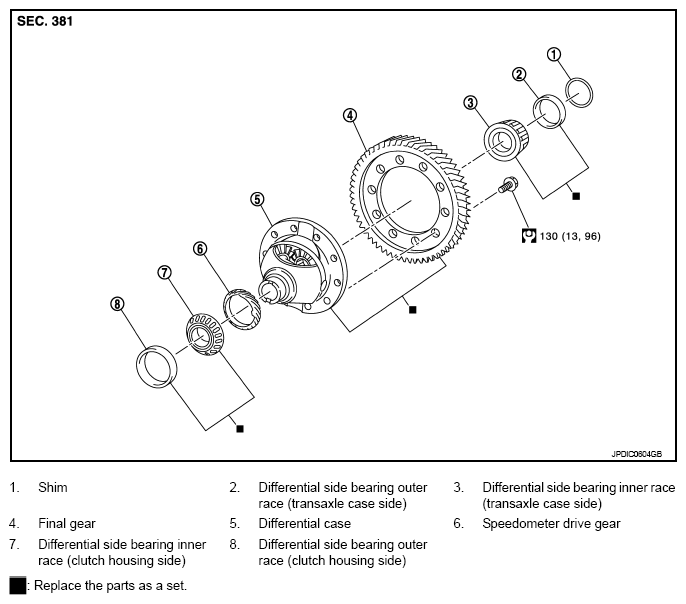

Fig 1: Disassembled View Of Transaxle Assembly Final Drive Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
