Cross-Sectional View: Notes

WARNING: This page is about a different variant/trim than selected.

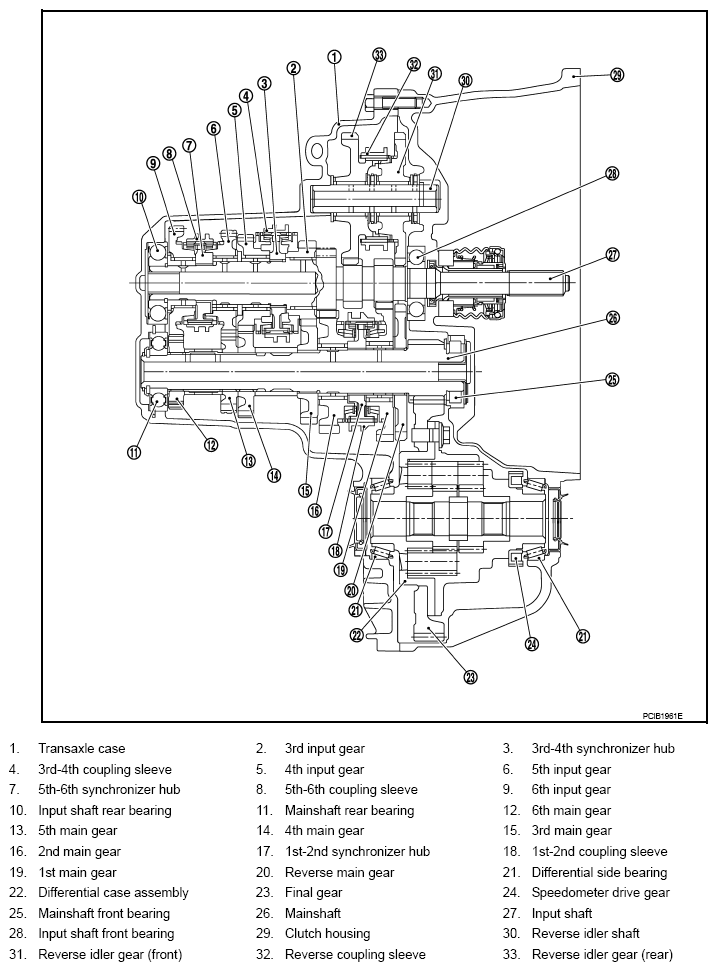

Fig 1: Cross-Sectional View Of Transmission
G08179973Courtesy of NISSAN NORTH AMERICA, INC.
