Section 7 (Manual Transmission (RS6F52H))
›
Service Information
›
Transaxle Assembly
›
Disassembly and Assembly
›
Components
›
Shift Control Components
Shift Control Components
WARNING:
This page is about a different variant/trim than selected.

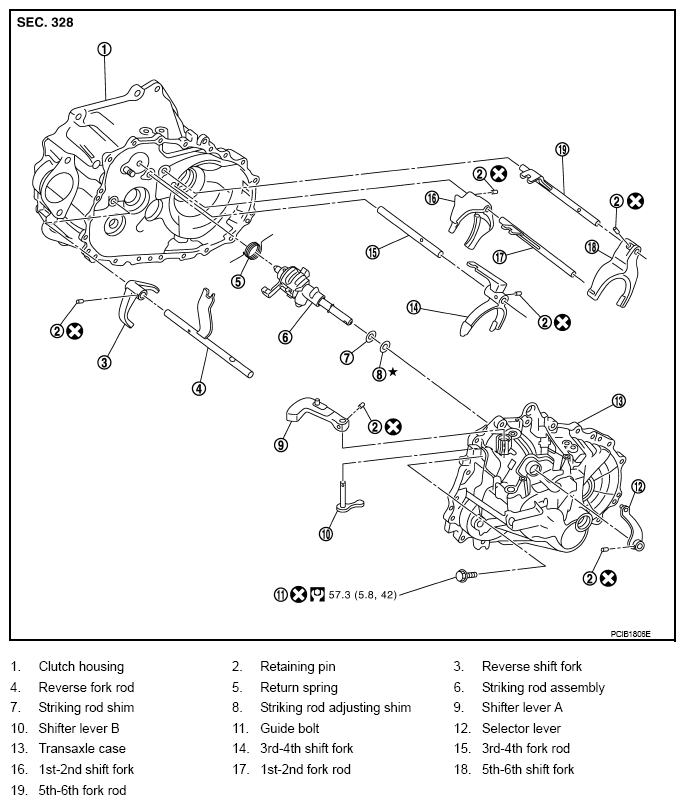

Fig 1: Disassembled View Of Transaxle Assembly Shift Control Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
