Engine Assembly: Component

WARNING: This page is about a different variant/trim than selected.

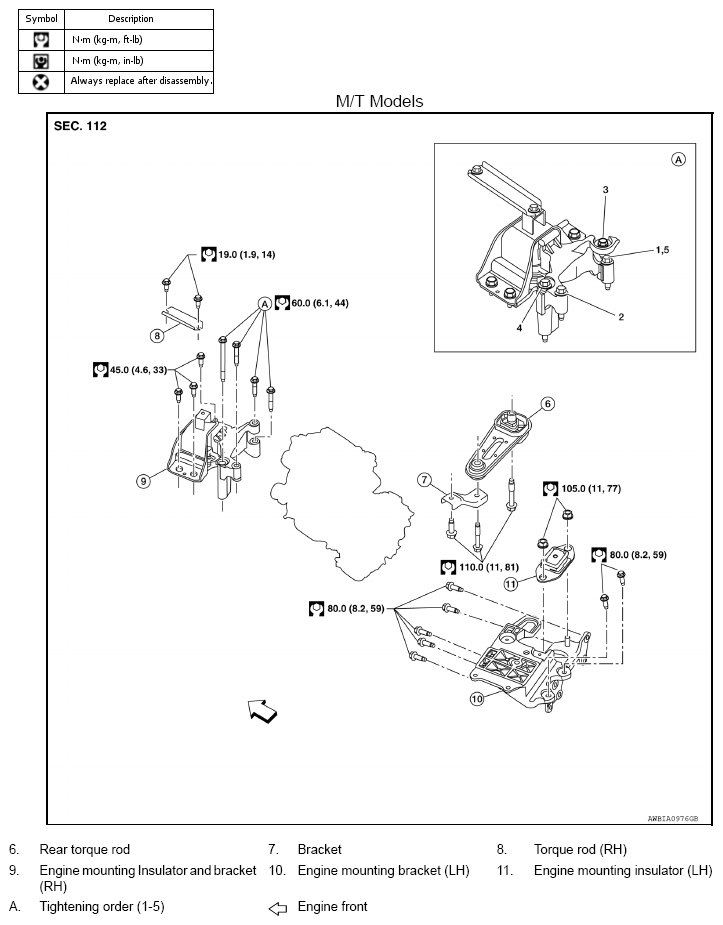

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (M/T Models)

Courtesy of NISSAN NORTH AMERICA, INC.

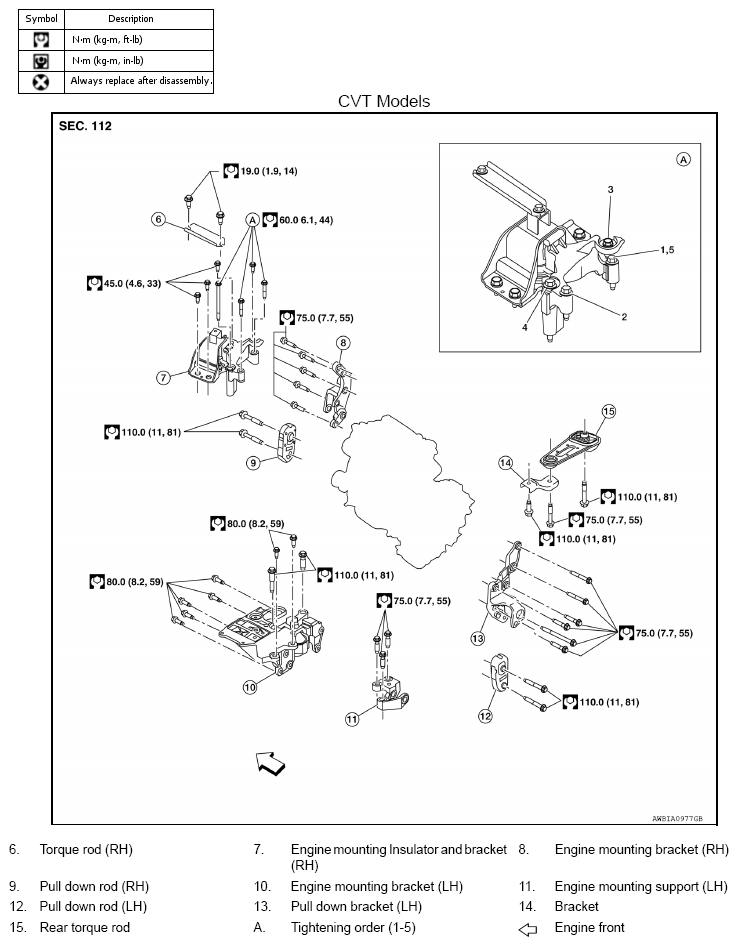

Fig 2: Exploded View Of Engine Assembly With Torque Specifications (CVT Models)

Courtesy of NISSAN NORTH AMERICA, INC.
