Timing Chain: Component

WARNING: This page is about a different variant/trim than selected.

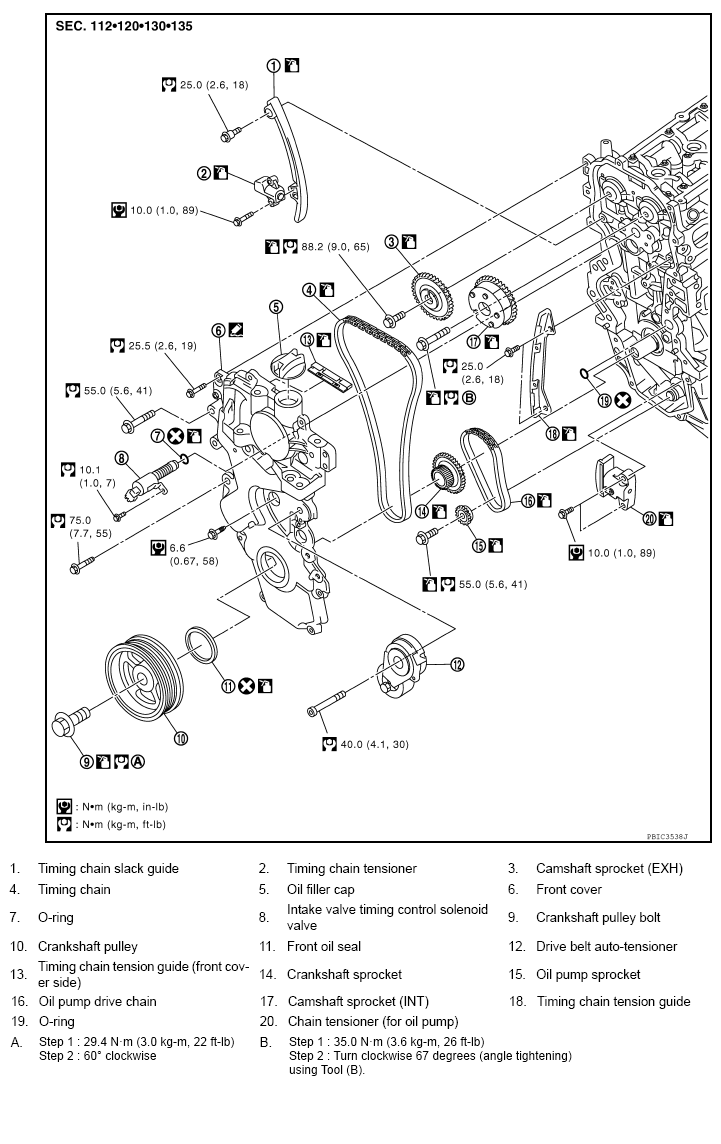

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G08502780Courtesy of NISSAN NORTH AMERICA, INC.
