Drive Cycle Pattern No. 10
Drive Cycle Pattern No. 10

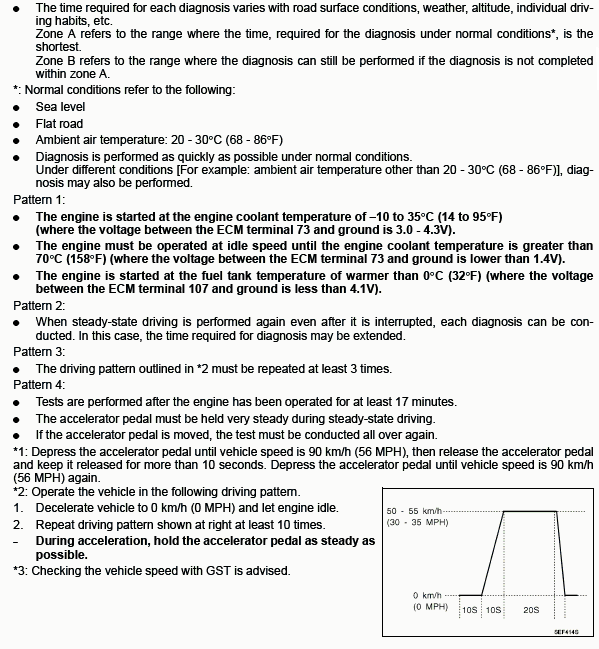

Fig 1: Drive Cycle Pattern No. 10

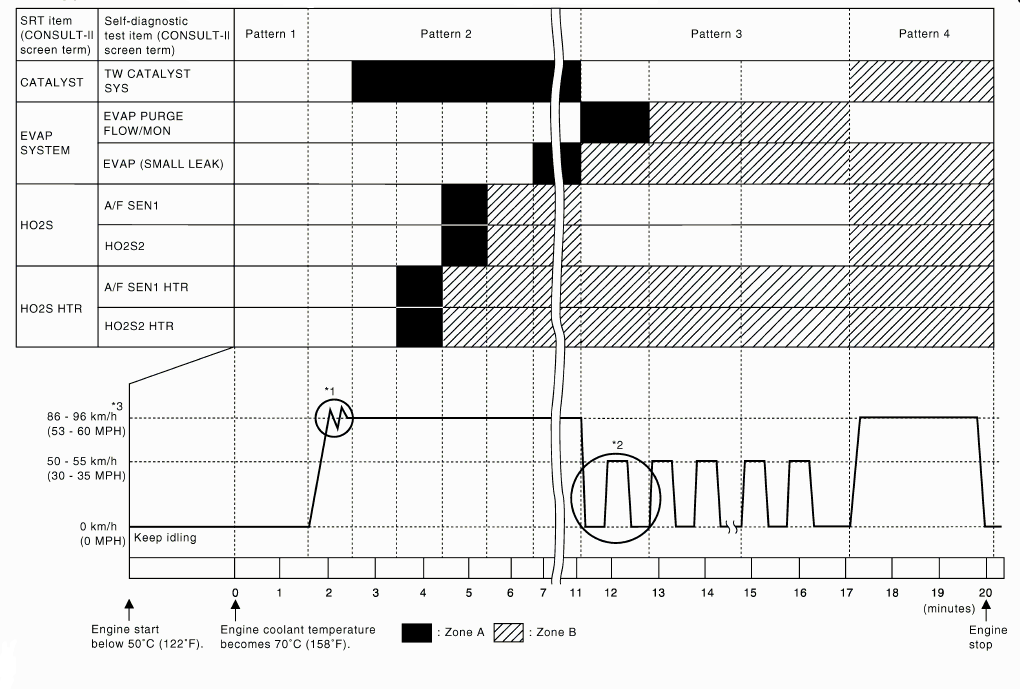

Fig 2: Drive Cycle Legend No. 10
