Drive Cycle Pattern No. 12
Drive Cycle Pattern No. 12

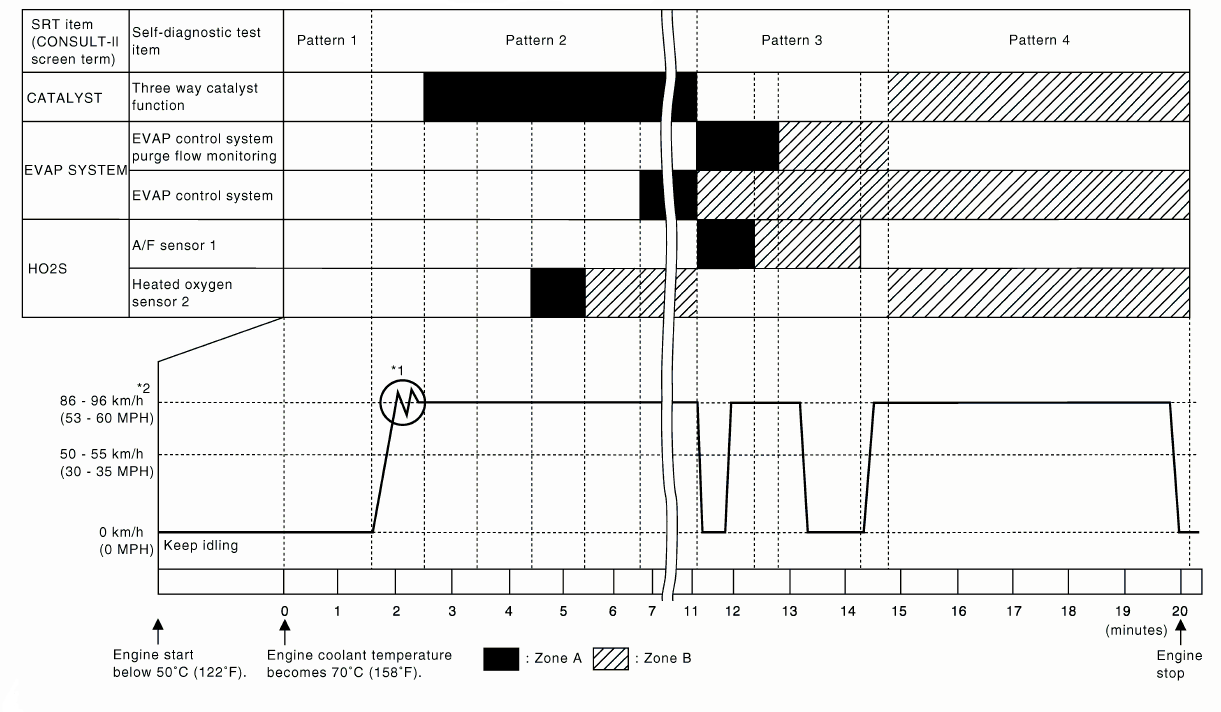

Fig 1: Drive Cycle Pattern No. 12

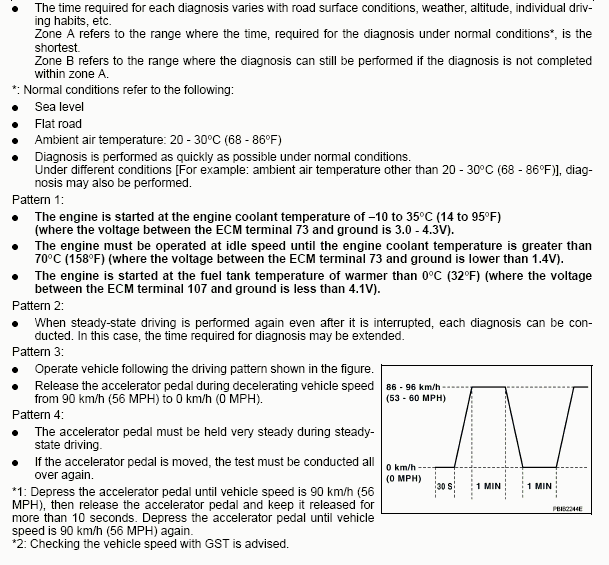

Fig 2: Drive Cycle Legend No. 12
